PRODUCT DESCRIPTION
DHLCT electric tea table lifting frame is equipped with electric push rod to drive the rise and fall of the tea table by controlling the electric push rod, which is noiseless, convenient and practical.The product can be applied to dining table, functional coffee table, tea table, telescopic tea table, etc.
Features: This electric coffee table lifting frame is equipped with an electric push rod, which can drive the coffee table up and down by controlling the electric push rod, which is noise-free and convenient.
TECHNICAL PARAMETERS
| Model | DHLCT-25 |
| Load Capacity | 60KG |
| No-load Speed | 13.5MM/S |
| Min Height | 100MM |
| Max Height | 370MM |
| Stroke | 270MM |
| Size (L * W * H) | 400*320*100MM |
| Weight | 6KG |
| Voltage | DC24-32V/DC12-19V/Hall29V-32V |
| Surface Treatment | Electrophoretic Black |
| Operating Temperature | -10°C~+65°C |
| IP Grade | IP43 |
| Limit Switches | Built-in |
| Operating Frequency | 10% Work System, Maximum 1 Hour Continue Working |
| Optional Configuration | Hall Sensor: Position Display, Position Memory, Precise Control |
| Magnetic Induction Sensor: Adjust Rising And Falling Limit | |
| Upper And Lower Limit Feedback |

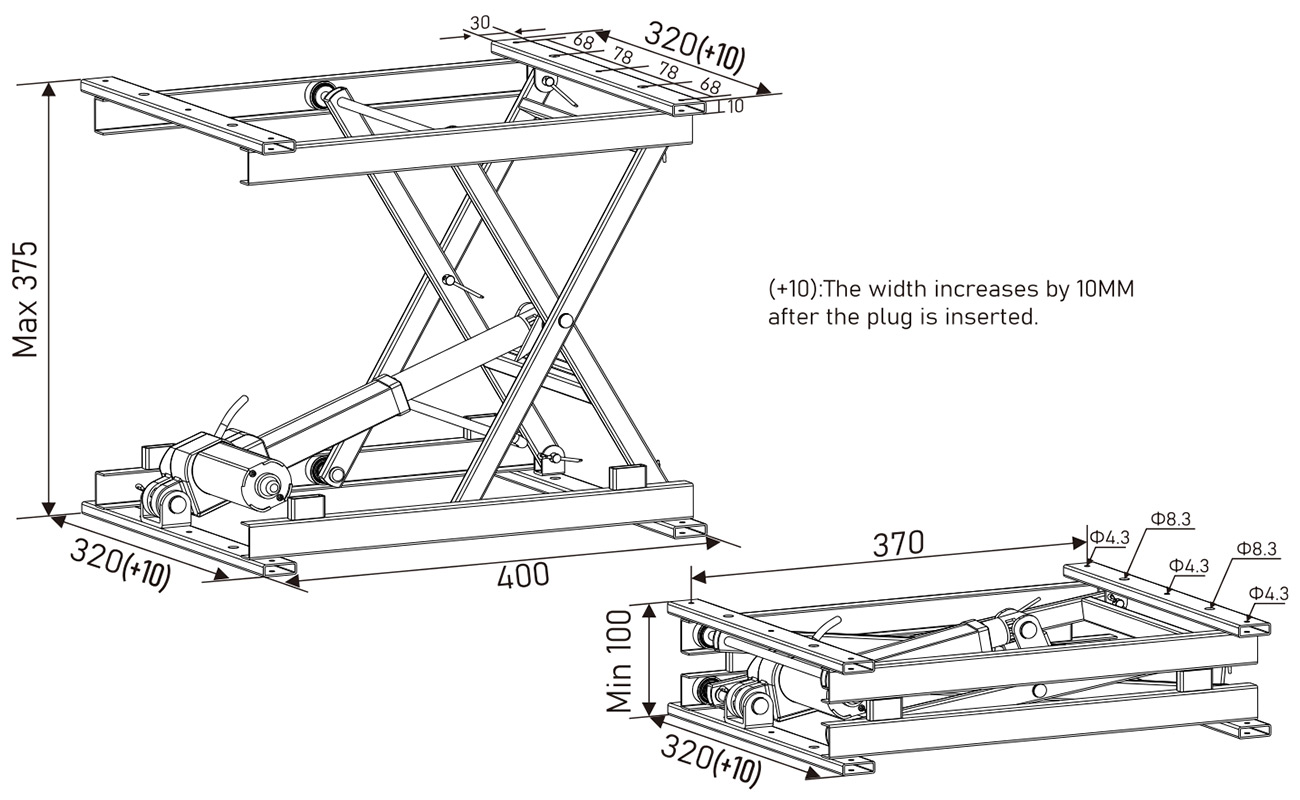

OUTLINE DIMENSION DRAWING
