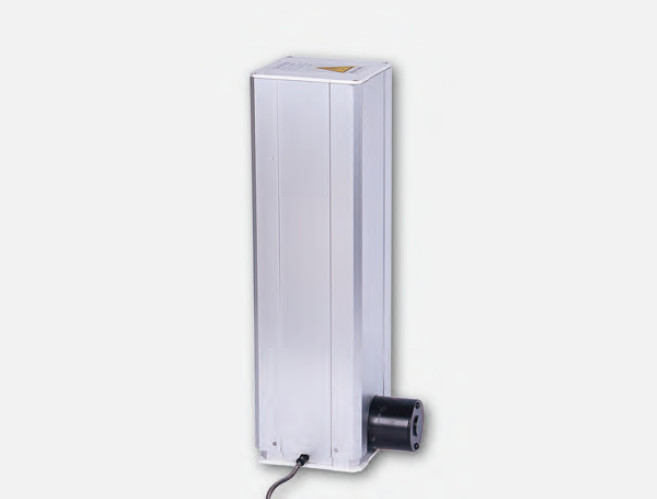

IP7180 Electric Lifting Column

Stroke:
  • 50MM
  • 100MM
  • 150MM
  • 200MM
  • 250MM
  • 300MM
  • 350MM
  • 400MM
  • 450MM
  • 500MM
  • 600MM
  • 700MM
  • 800MM
  • 900MM
  • 1000MM
  • 1100MM
  • 1200MM
  • 1300MM
  • 1400MM
Speed:
  • DC12V3.3MMS7500N
  • DC12V4.5MMS5500N
  • DC12V9MMS2700N
  • DC12V14MMS1800N
  • DC12V24MMS500N

製品説明

Introduction

The product is an electric lifting column with an aluminum alloy shell. It can withstand high temperature and shock resistance. 50-600 stroke can be customized, with built-in limit switch. Easy to install and durable, simple structure, convenient switch, beautiful style, durable material, as bright as new.

Product features

● Adopt aluminium alloy shell
● Protection Level: IP43
● Low noise and large expansion range
● Widely used

Technical Parameters

Voltage 24V
No-load Speed(mm/s) 4 7 20 36
Load Capacity(N) 4000 2500 1500 400
Initial Height(mm) L =S+170, S ≥ 50
Operating Temperature 0℃ ~+40℃
IP Grade: IP43
Limit Switches Built-in
Operating Frequency 10% max 2min.continuous use
Color Silver White
Panels Powder Coating
Stroke Length(mm) 50mm-600mm
Optional Features Upper Computer Control

Outline Dimension Drawing
