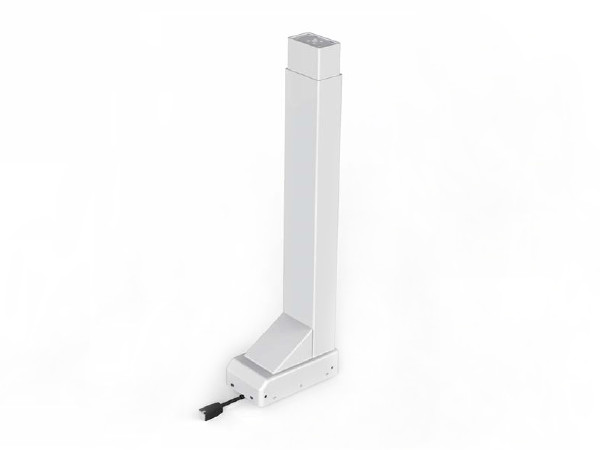

CTD-R-C Electric Lifting Column

● Max Thrust: 800 N;

● Input Voltage(V): 24 VDC



Extremely powerful lift able to create reliable movement even in very harsh environments.

Comes with TAIXI integrated controller (IC) and it is suitable for various indoor and outdoor environments.

PDF Obrigatório
ONLINE MESSAGEX
Descrição do Produto

Introduction

This lifting column is specially designed for ergonomic desks and workstations. Using stable control box and universal control handle compatible with a variety of L series lifting column, can synchronize movement and smooth, smooth control of the working surface.

Technical Parameters

Model CTD-R-C2
Input voltage 24VDC
Maximum load 1000N
Standard itinerary 500mm
Minimum installation distance 650 mm
Color RAL9005, 7045, 9016
Maximum speed 40mm/s
Frequency of use 10%; Max.2min/min.off
ambient temperature 0-40 degrees Celsius
Model CTD-R-C3
Input voltage 24VDC
Maximum load 800N
Standard itinerary 650mm
Minimum installation distance 560 mm
Color RAL9005, 7045, 9016
Maximum speed 40mm/s
Frequency of use 10%; Max.2min/min.off
ambient temperature 0-40 degrees Celsius

Outline Dimension Drawing

CTD-R-C2



CTD-R-C3
