PRODUCT DESCRIPTION

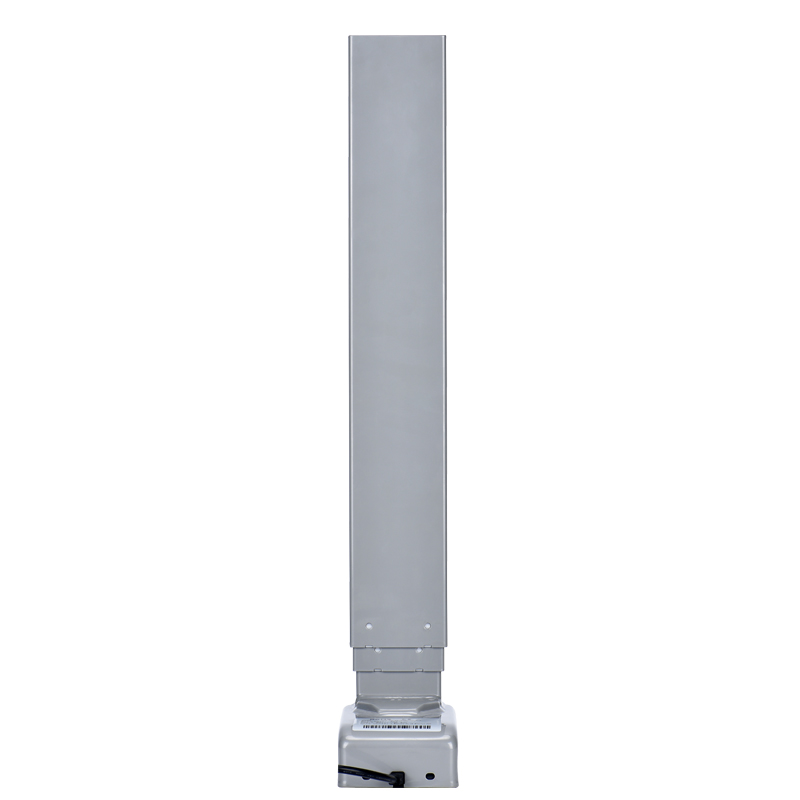

DHLC2000 electric lifting column,maximum load 200kg,speed 18MM/S,built-in Hall sensor,infinite switch,need to be controlled by Hall controller.The electric lifting column is divided into 2 columns and 3 columns,and the stroke is divided into 450MM/600MM/800MM/1100MM/1400MM.Suitable for furniture desks,industrial lift tables,photography tables,laboratory lift tables,TV lifts and other places.
TECHNICAL PARAMETERS
| Model | 1100L |
| Initial Height | 850MM |
| Final Height | 1950MM |
| Stroke Length | 1100MM |
| Section | 3 |
| Input Voltage | DC24V~DC30V |
| Load Capacity(N) | Max 140KG 1S /200KG 2S/ 300KG 4S |
| Noise | 30dB |
| Maximum Power | 90W |
| Maximum Speed | 18MM/S |
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Usage Frequency | 10% Work System, Maximum 1 Hour Continue Working |
| Ambient Temperature | -10℃ to 60℃ |
| Optional Features | Hall Sensor |
| Limit Switches | None |
| Install Screws | M6*16MM, If the screw is too long, it will damage the motor |
| Rated Working Capacity | 80% of Maximum Load, Unable to maintain maximum load operation for a long time |
| Note | 2 columns lifting system and 4 columns lifting system, |
OUTLINE DIMENSION DRAWING
