DHLC2000-500U Electric Lift Table Legs 1V1 Hall

Model:

500U

Color:

Black
Grey
White

Quantity:

Add to Inquiry

About this item

1. DHLC2000 Electric Lifting Table Legs: For versatile applications

2. Speed 14/40MM/S: Moves at 14/40MM/S speed

3. Hall Sensor & Infinite Switch: Equipped with Hall sensor and infinite switch

4. 2/3 Columns, Multiple Strokes: Choose from 2 or 4 columns, with 500MM/650MM/900MM stroke options. Suitable for various settings like furniture desks, industrial lift tables, photography tables, labs, and TV lifts.

Product Description

PRODUCT DESCRIPTION

DHLC2000-U electric lifting column, maximum load 150kg, speed 14MM/S, built-in Hall sensor, inﬁnite switch, need to be controlled by Hall controller. The electric lifting column is divided into 2 columns and 3 columns, and the stroke is divided into 500MM/650MM.
Electric lifting columns are suitable for furniture desks, industrial lift tables, photography tables, laboratory lift tables, TV lifts and other places.

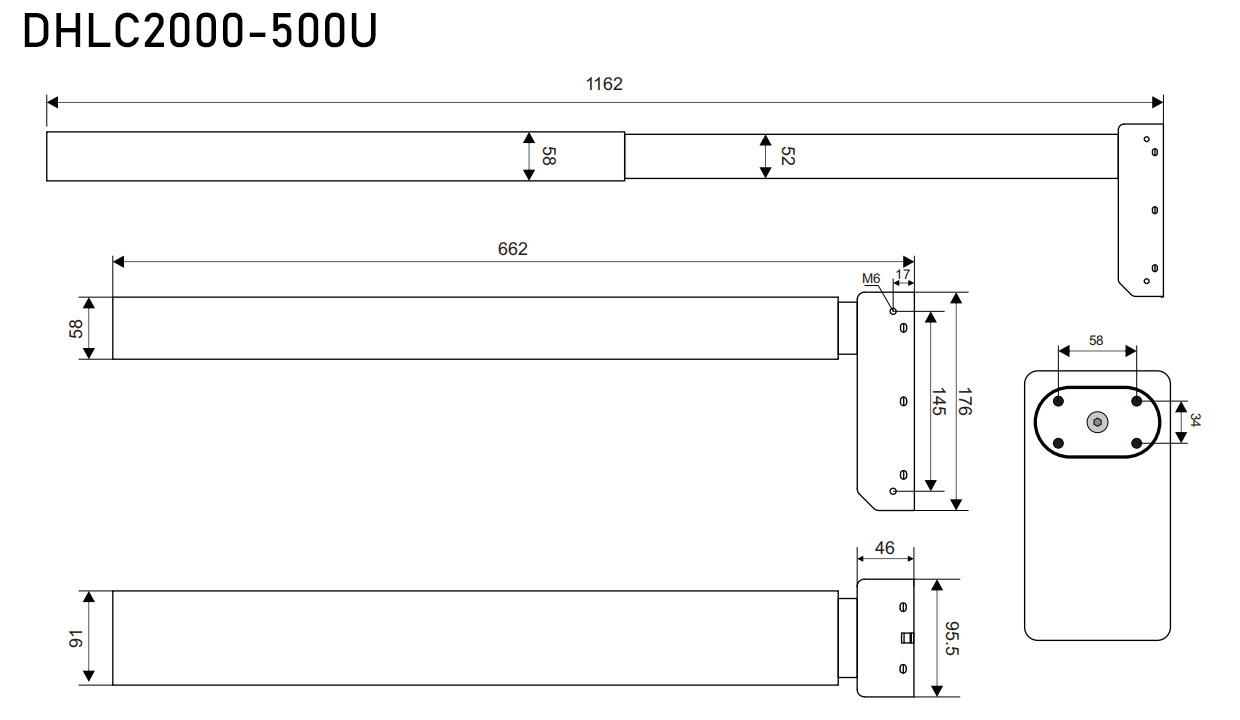

TECHNICAL PARAMETERS

Model	500U
Initial Height	662MM
Final Height	1162MM
Stroke Length	500MM
Section	2
Input Voltage	DC24V~DC32V
Max Load Capacity	150KG / 70KG
Maximum Power	150W / 120W
No-load Speed	14MM/S / 40MM/S
Noise	25dB / 35dB
Color	RAL9005(Black)/RAL7045(Gray)/ RAL9016(White)
Usage Frequency	10% Work System, Maximum 20 Minutes Continue Working
Ambient Temperature	-10℃~ +60℃
Optional Features	Hall Sensor
Limit Switches	None
Install Screws	M6*16MM, If the screw is too long, it will damage the motor
Rated Working Capacity	80% of Maximum Load, Unable to maintain maximum load operation for a long time
Note	2 columns lifting system and 4 columns lifting system, any columns cannot exceed 100KG load and needs to be kept fixed.
