DHLC800-450I Electric Lift Table Legs 1V4 Hall

Model:

450I

Color:

Black
Grey
White

Add to Inquiry

About this item

1. Type: Cylindrical electric lifting column, available in 2-section or 3-section options, with an aluminum shell and diameters of 80mm/60mm.

2. Height Adjustment: The 2-section column offers a height range of 200-800mm, while the 3-section column ranges from 2400mm to 1600mm.

3. Versatile Installation: The top features 3*M8 threaded holes for mounting accessories or a flat plate, while the bottom is designed for embedded installation. It can also be paired with a triangle bracket and universal wheels.

4. Powerful Functionality: Suitable for DC12V/DC24V input, with a maximum load capacity of 150KG and a top speed of 36mm/s.

5. Safety Features: Equipped with a built-in limit switch, it automatically powers off at the top position to prevent jamming. The self-locking mechanism ensures stability after power-off. The aluminum alloy shell undergoes sandblasting and oxidation treatment for an aesthetically pleasing appearance.

Product Description

PRODUCT DESCRIPTION

DHLC800-I electric lifting column, maximum load 100kg, speed 25MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller. The electric lifting column is divided into 2 columns and 3 columns, and the stroke is divided into 500MM/650MM
Suitable for furniture desks, industrial lift tables, photography tables, laboratory lift tables, TV lifts and other places

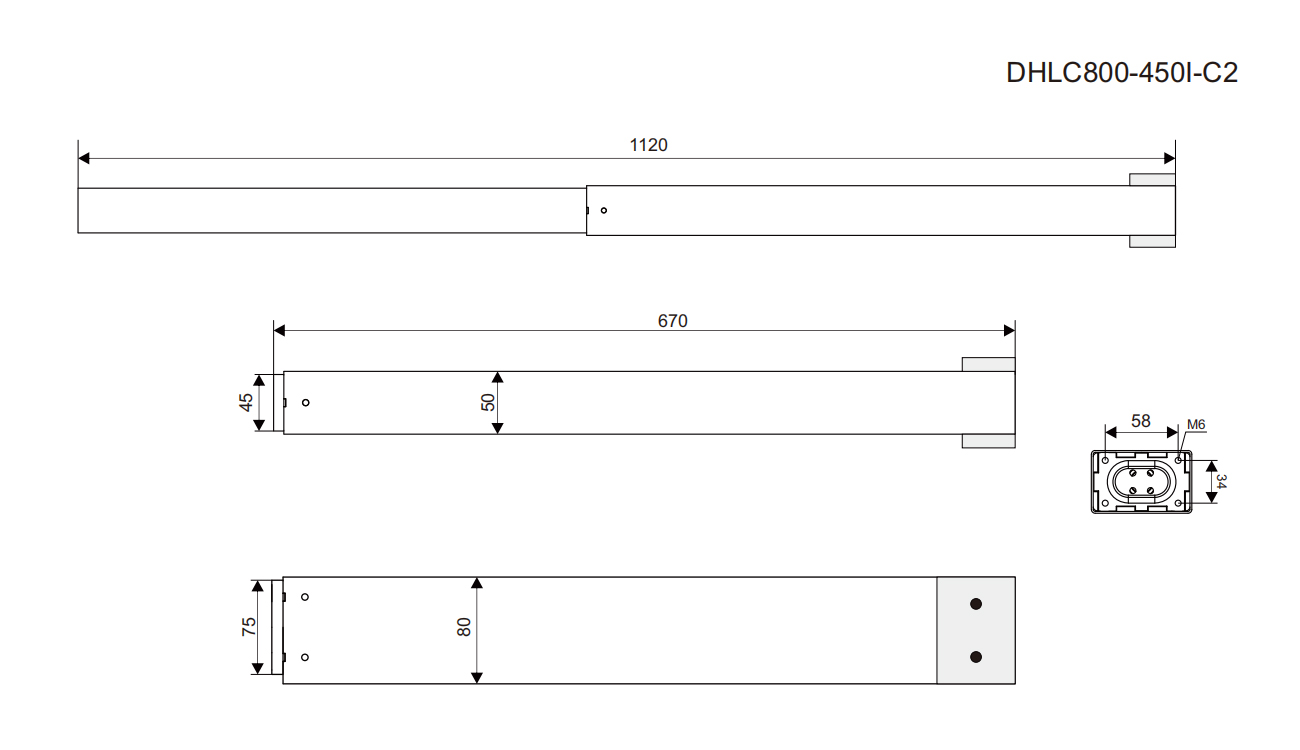

TECHNICAL PARAMETERS

Model	450I
Initial Height	670MM
Final Height	1120MM
Stroke Length	450MM
Section	2
Input Voltage	DC24V~DC30V
Load Pull Capacity(N)	200N/800N
Load Push Capacity(N)	200N/800N
Self-locking Capacity(N)	200N/800N
Maximum Power	45W
Maximum Speed	15MM/S
Color	RAL9005(Black)/RAL7045(Gray)/ RAL9016(White)
Usage Frequency	10% Work System, Maximum 1 Hour Continue Working
Ambient Temperature	-10℃ to 60℃
Optional Features	Hall Sensor
Limit Switches	None
Install Screws	M6*16MM, If the screw is too long, it will damage the motor
Rated Working Capacity	80% of Maximum Load, Unable to maintain maximum load operation for a long time
Note	2 columns lifting system and 4 columns lifting system, any columns cannot exceed 100KG load and needs to be kept fixed
