| Color： | Silver White |
| Max Load： | 2000N |
| Max Speed： | 5MM/S |

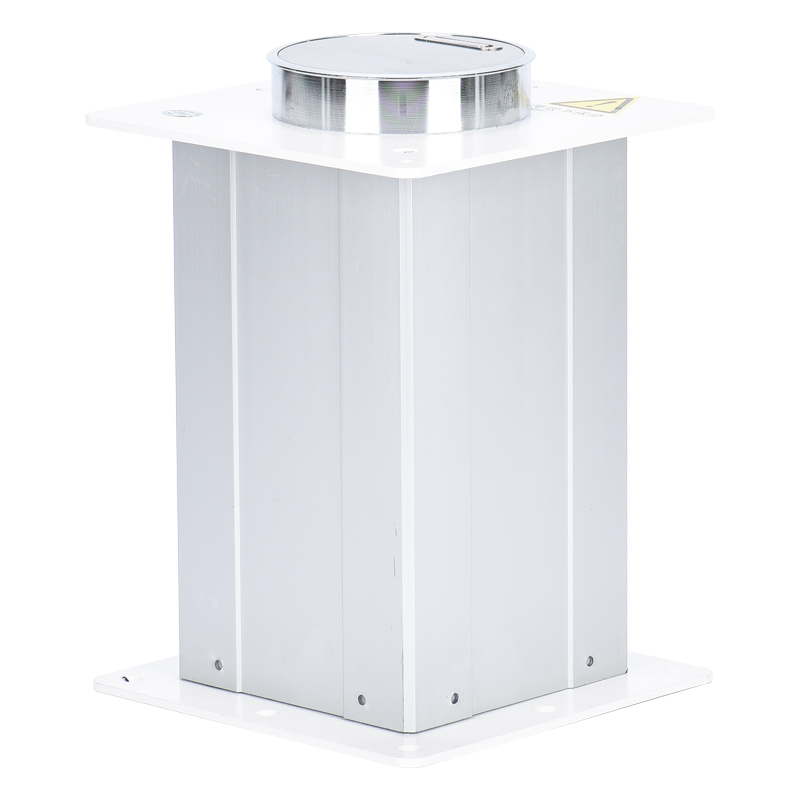

1. Manual-to-Electric Conversion: The DHLCM tatami lift is an ingenious conversion from manual to electric, eliminating the need for a motor mechanism. It features a circular transmission box (26.2MM height) with a built-in metal handle at the top, enabling manual control for up and down movement.
2. Sturdy Lock Mechanism: The lock mechanism is designed to support items weighing up to 200KG, ensuring secure and reliable usage.
3. Adjustable Initial Height: Available in three variants (260/310/360MM), the manual tatami elevator can be tailored to different initial height requirements.
4. Variety of Shell Options: The shell comes in two options: large aluminum (144/133/122MM) and China Aluminum (113/104/95MM), allowing you to choose according to your preferences.
5. Customizable Mounting Panels: Tailor the upper and lower mounting panels to your needs—large aluminum (200*200MM or 290*290MM) and China Aluminum (200*200MM or 245*245MM)—providing flexibility in design. We also offer various customized aluminum profile processing services for a personalized touch.
The DHLCM tatami manual lift is modified with an electric lift, and the motor mechanism is cancelled. The top of the
manual lift has a circular transmission box with height of 26.2MM, and built-in metal handle. The transmission mechanism
is driven up and down by hand. The lock mechanism can carry 200KG items. If you need a hole opener, please contact
us;
The manual tatami elevator is divided into 260/310/360MM according to the initial height; the shell is divided into large
aluminum 144/133/122MM, China Aluminum 113/104/95MM; the upper and lower mounting panels are large aluminum
200*200MM (290*290MM); China Aluminum 200 *200MM (245*245MM), you can match according to your own needs,
and we also provide a variety of customized aluminum profile processing services
| Model | DHLCM360A |
| Panel Size | 200*200 |
| Initial Height (MM) | 355 |
| Final Height (MM) | 810 |
| Stroke Length (MM) | 455 |
| Section | 3 |
| Speed | 5MM / Circe |
| Bearing Capa city | 200KG |
| Load Capacity | 2000N |
| Color | Silver White |
| Panels | Powder Coating |
| * does not contain handle box, is the height of the upper and lower iron plate. Other specifications, sizes can be customized | |
