DHLT1-Z09 elevating desk is a kind of table that can be raised or lowered freely. It is suitable for users of different heights and is commonly used in learning desks used by growing children.And office workers can also use this product, in the office to use the lifting desk, can achieve sitting office and standing office two modes.
| Model | DHLT1-Z09 |
| Voltage | AC100~240V to DC24V |

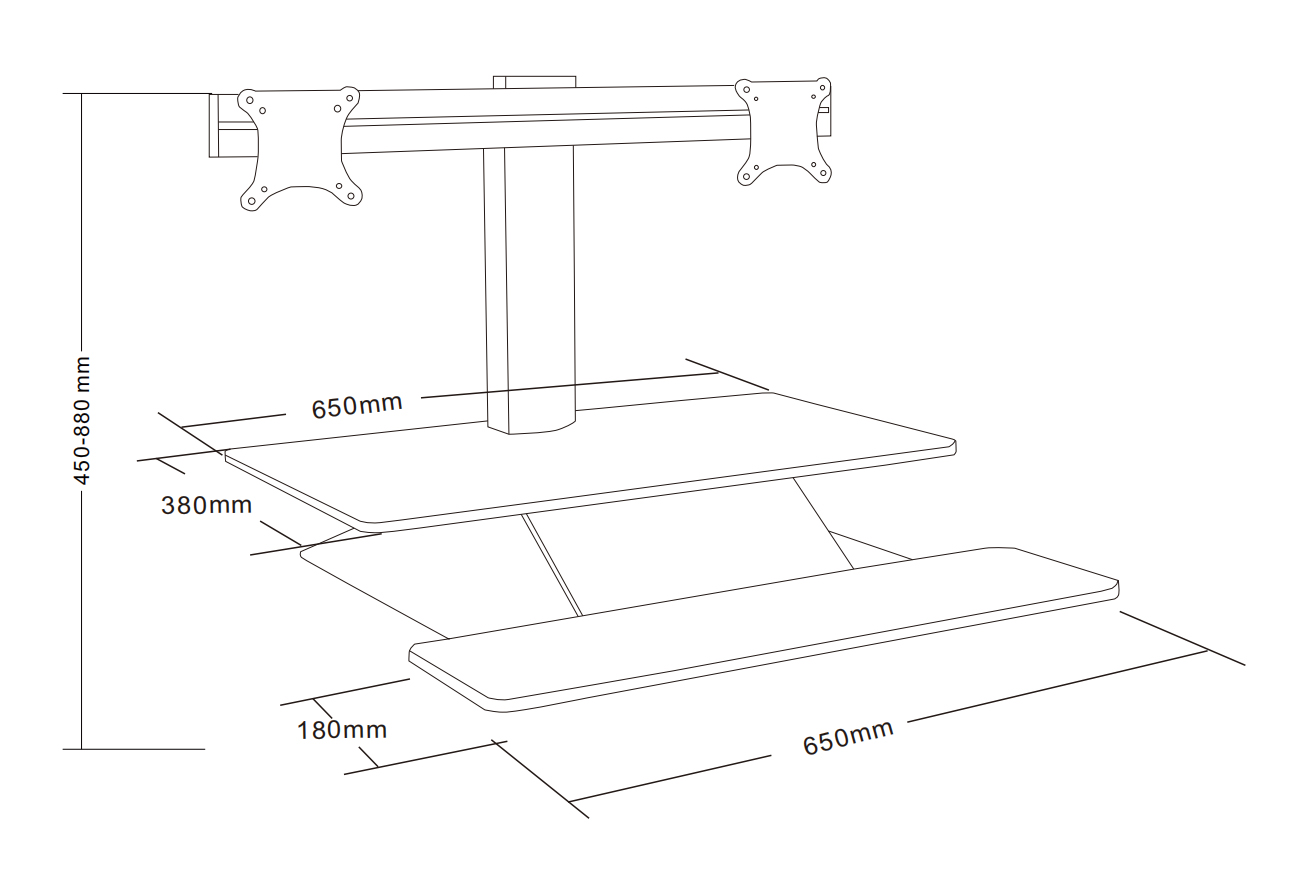

| Table Board Size | 650mmx380mm + 650mmx180mm |
| Height Adjustable Range | 450~880MM |
| Section | 3 |
| Load Capacity | 500N | 50kg |
| Speed | 30MM/S |
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature | 0°C~+40°C |
| IP Grade | IP54 |
| Operating Frequency | 10% max 2min.continuous use |
| Limit Switches | None |
| Panels | None |
| Controller | Hall Controller | With APP Hall Controller |
| Customized | Table Leg | Hand Control | Color |
| Packaging | L780mm *W680mm *H175mm |
| File name (click to view); | file type | File Download |
|---|---|---|
| DIHOOL-DHLT1-Z09.pdf |
|
| File name (click to view) | file type | File Download |
|---|---|---|
| IPF12.sldasm.html | HTML |
|
| IPF13.sldasm.html | HTML |
|
| IPY70.sldasm.html | HTML |
|
| IPY75-12.sldasm.html | HTML |
|
| IPY75-13.sldasm.html | HTML |
|
