1.Good Wear Resistance:The motor is made of metal material, with a long service life and good wear resistance.
2. Enhanced Versatility: With its ability to convert rotary motion to linear motion, it offers flexibility in designing and controlling complex systems.
3. Efficient Automation: The reciprocating motor facilitates automation in various devices and systems, enhancing convenience and functionality.
4. Reciprocating Motor: This electric drive device transforms the rotary motion of a motor into linear reciprocating motion, making it a versatile component.

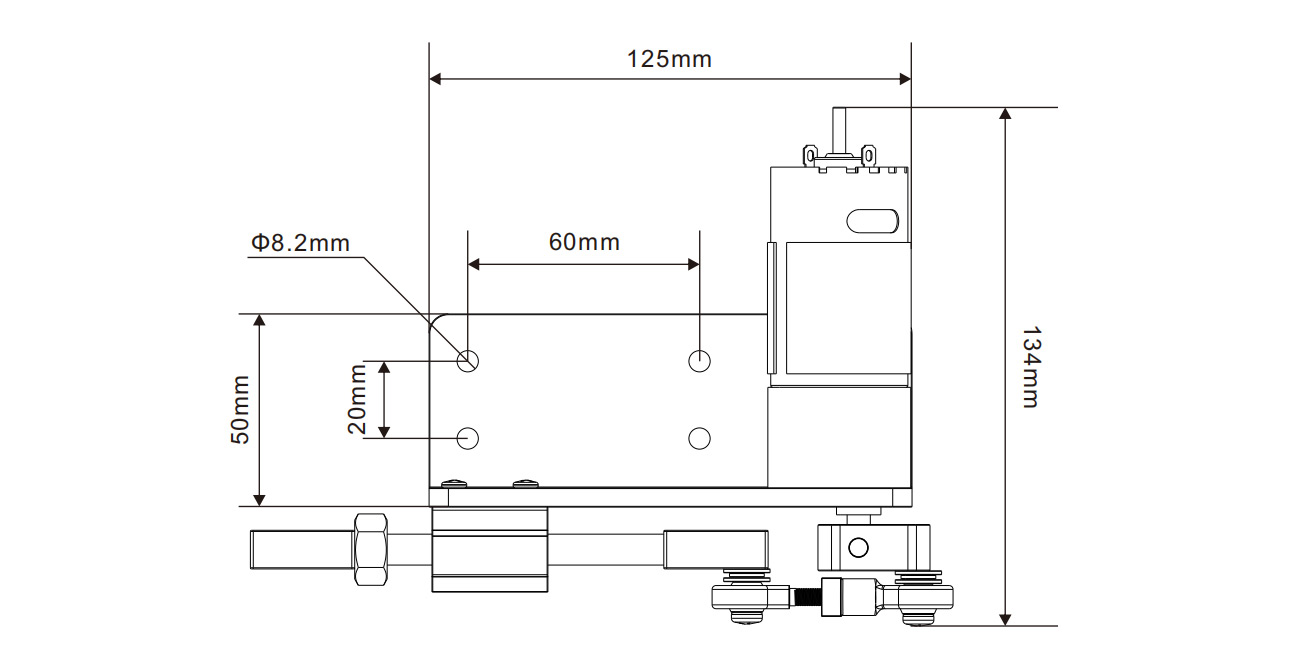

DIY-37GB555 Reciprocating Linear Actuator is made of metal material, with long service life and good wear resistance.The Reciprocating Linear Actuator can reciprocate continuously, which is different from the discontinuous operation of the ordinary linear push-rod motor.
| Voltage | DC12~19V | |||||||||
| No-load Revolutions (RPM) | 10 | 18 | 30 | 55 | 85 | 120 | 170 | 280 | 500 | 900 |
| Load Revolution (RPM) | 8 | 14.4 | 24 | 44 | 68 | 969 | 136 | 224 | 400 | 720 |
| No-load Current (A) | 0.35 | 0.35 | 0.38 | 0.38 | 0.38 | 0.38 | 0.4 | 0.45 | 0.45 | 0.5 |
| Rated Torque (KG.CM) | 2 | 2 | 2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.3 | 2.5 | 2.5 |
| Reduction Ratio | 28.9 | 25 | 19.5 | 18.8 | 15.2 | 12.6. | 8.8 | 4.6 | 2.8 | 1.5 |
| 12mm Stroke Torque (KG) | 16.86 | 14.58 | 11.38 | 10.97 | 8.87 | 7.35 | 5.13 | 2.68 | 1.63 | 0.88 |
| 16mm Stroke Torque (KG) | 11.74 | 10.16 | 7.92 | 7.64 | 6.18 | 5.12 | 3.58 | 1.87 | 1.14 | 0.61 |
| 20mm stroke torque (KG) | 8.67 | 7.5 | 5.85 | 5.64 | 4.56 | 3.78 | 2.64 | 1.38 | 0.84 | 0.45 |
| 25mm stroke torque (KG) | 5.78 | 5 | 3.9 | 3.76 | 1.04 | 2.52 | 1.76 | 0.92 | 0.56 | 0.3 |
| File name (click to view) | file type | File Download |
|---|---|---|
| DHLA-DIY-37GB555.html | HTML |
|
| DHLA-DIY-37GB555.STEP | STP |
|
