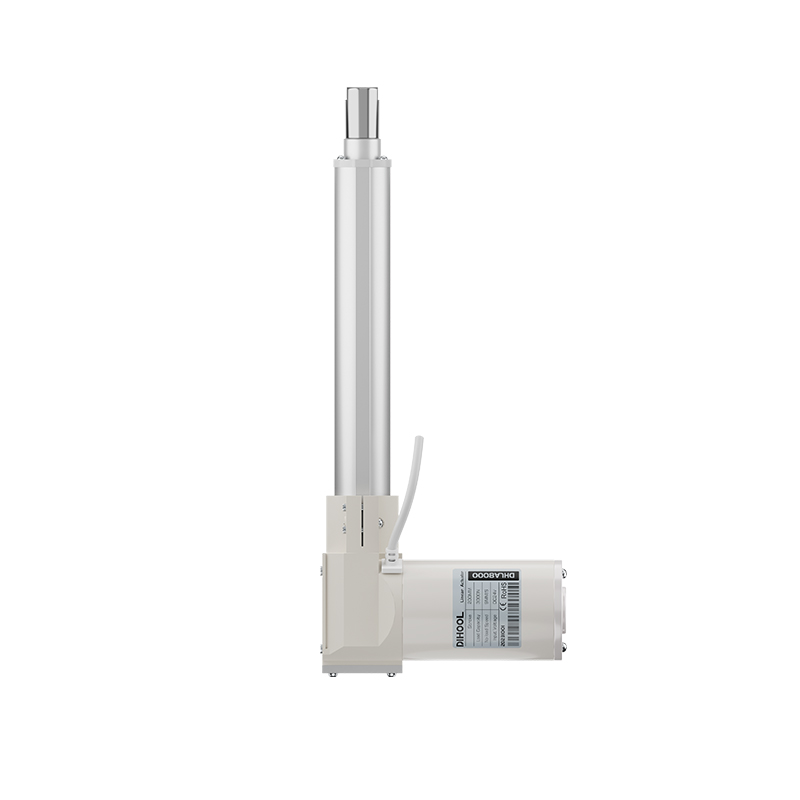

DHLA-DIY-37GB330 Reciprocating Linear Actuator 24V

The mall price includes tax and shipping (DDP).If you need a large quantity of products, please contact us(FOB).
Whatsapp: 86-15669851253
Email: sales@dihool.com

Speed:

5RPM
10RPM
15RPM
20RPM
30RPM
50RPM
60RPM
87RPM
100RPM
150RPM
200RPM
300RPM
400RPM
500RPM
600RPM
800RPM
1000RPM

Stroke:

12MM
16MM
20MM

Add to Inquiry

About this item

1. Reciprocating Motor: This electric drive device transforms the rotary motion of a motor into linear reciprocating motion, making it a versatile component.

2. Remote Control Capability: It can serve as an executing machine in various processes, enabling remote control, centralized control, or automatic control.

3. Wide Range of Applications: This product finds utility in diverse applications, including electric sofas, booth lifting levers, industrial lifting systems, camera frames, projectors, wedding systems, and electric beds.

4. Enhanced Versatility: With its ability to convert rotary motion to linear motion, it offers flexibility in designing and controlling complex systems.

5. Efficient Automation: The reciprocating motor facilitates automation in various devices and systems, enhancing convenience and functionality.

Product Description

PRODUCT DESCRIPTION

Reciprocating motor is a kind of electric drive device which changes the rotation motion of the motor into the linear reciprocating motion of the Linear Actuator.It can be used as an executing machine in various simple or complex process flow to realize remote control, centralized control or automatic control.This product can be used in electric sofa, electric booth lifting lever, industrial electric lifting system, camera frame, projector, wedding system, electric turning bed, electric nursing bed, etc.

TECHNICAL PARAMETERS

Voltage	DC24V
No-load Revolutions (RPM)	5	10	15	20	30	50	60	87	100
Load Revolution (RPM)	4	8	12	16	24	40	48	69.6	80
No-load Current (A)	0.04	0.05	0.03	0.04	0.03	0.03	0.03	0.03	0.03
Rated Current (A)	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45
Rated Torque (KG.CM)	12	12	9.5	8	5	3.5	3	3	2
Reduction Ratio	1/516	1/516	1/314	1/221	1/148	1/95	1/58	1/58	1/48
12mm Stroke Torque (KG)	7.00	7.00	5.54	1.67	2.92	2.04	1.75	1.75	1.17
16mm Stroke Torque (KG)	4.88	4.88	3.86	3.25	2.03	1.42	1.22	1.22	0.81
20mm stroke torque (KG)	3.6	3.6	2.85	2.4	1.5	1.05	0.9	0.9	0.6
No-load Revolutions (RPM)	150	200	300	400	500	600	800	1000
Load Revolution (RPM)	120	160	240	320	400	480	640	800
No-load Current (A)	0.06	0.03	0.03	0.02	0.04	0.04	0.07	0.04
Rated Current (A)	0.48	0.45	0.48	0.45	0.52	0.52	0.58	0.52
Rated torque (KG.CM)	1.5	1	1	0.5	0.5	0.5	0.5	0.3
Reduction Ratio	1/31	1/22	1/17	1/9	1/9	1/9	1/9	1/3
12mm Stroke Torque (KG)	0.88	0.58	0.58	0.29	0.29	0.29	0.29	0.18
16mm Stroke Torque (KG)	0.61	0.41	0.41	0.20	0.20	0.20	0.20	0.12
20mm Stroke Torque (KG)	0.45	0.3	0.3	0.15	0.15	0.15	0.15	0.09
