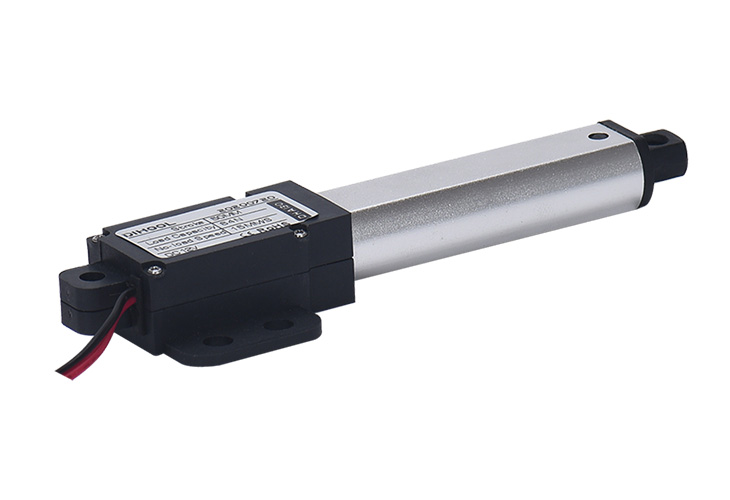

DHLA130 A1 Type 12V Electric Linear Actuator

Stroke:

10MM
50MM
100MM
150MM

Speed:

DC12V150MMS8N
DC12V50MMS24N
DC12V30MMS40N
DC12V15MMS80N
DC12V10MMS120N
DC12V8MMS150N
DC12V5MMS235N

Add to Inquiry

Voltage：	12V
Current：	0.4Amp
Max Load：	235N
Max Speed：	150MM/S
Stroke：	10-150MM

About this item

1. Versatile Installation: The DHLA130 offers two installation methods, making it adaptable to various setups. Choose between lifting lugs or using the four motor position holes for secure fixation.

2. Adjustable Stroke and Thrust: With a stroke ranging from 10-150MM and thrust options between 20N-235N, this actuator provides versatility to cater to different requirements.

3. Dual-Speed Motor: Featuring a DC12V motor with both low and high-speed settings, the actuator offers flexibility in speed control. However, note that high-speed operation may result in increased noise levels.

4. Built-in Circuit Board: The actuator includes a built-in film circuit board that serves as an upper and lower limit mechanism, ensuring controlled and safe movement.

5. Durable Construction: Constructed with both outer and inner tubes made of aluminum alloy, the DHLA130 combines durability with a compact design. It finds common use in small load applications, including range hoods, toys, and Christmas tree decorations.

Product Description

PRODUCT DESCRIPTION

DHLA130 Micro electric linear actuator, there are two installation methods, one is through the lifting lugs, the second is through the four holes in the motor position to fix, the stroke is between 10-150MM, the thrust is between 235N-20N, This DC12V motor has a low speed and a high speed, so the noise is relatively large. The built-in film circuit board plays the role of upper and lower limit. The outer tube and the inner tube are made of aluminum alloy. This mini actuator is often used in small load fields such as range hoods, toys, Christmas trees, etc.

TECHNICAL PARAMETERS

Please note that a stroke of 150 cannot be performed at speeds of 50mm/s or higher.

Voltage	DC12V
Speed (MM/S)	150	50	30	15	10	8	5
Load Pull Capacity(N)	6.5	20	30	60	80	100	190
Load Push Capacity(N)	8	24	40	80	120	150	235
Self-locking Capacity(N)	6.5	20	30	60	80	100	190
Stroke Length	10mm-150mm
Motor Power	5W
Operating Temperature	-10℃~+50℃
Operating Frequency	10% max 2min. continuous use
Inner Tube	Aluminum Tube
Color	Black
Material	Aluminum
Limit Switches	Built-in
Protection Class	IP43
Noise	Below 55dB
Note	Customized DC6V / DC24V above 100pcs
Mechanical Life	More than 100,00 times
