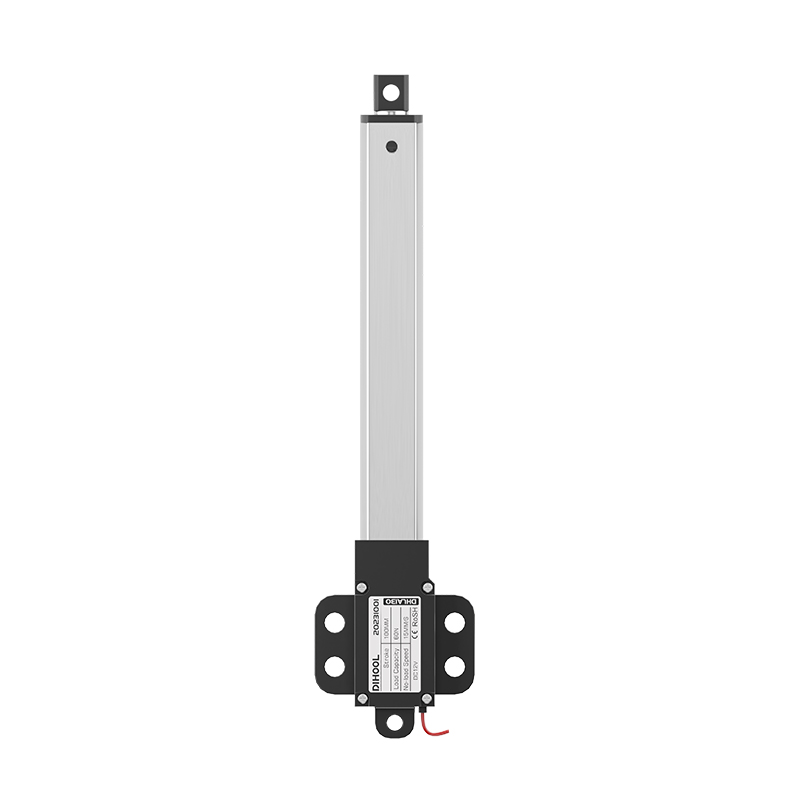

DHLA130 Micro/Mini Linear Actuator A1 12V

Stroke:
  • 10MM
  • 15MM
  • 17.5MM
  • 20MM
  • 21MM
  • 30MM
  • 50MM
  • 75MM
  • 100MM
  • 150MM
  • 200MM
Speed:
  • 150MM/S
  • 50MM/S
  • 28MM/S
  • 14MM/S
  • 7MM/S
  • 3.5MM/S


Voltage:12V
Current:0.4Amp
Max Load:180N
Max Speed:150MM/S
Stroke:10-200MM


About this item

1. Versatile Installation: The DHLA130 offers two installation methods, making it adaptable to various setups. Choose between lifting lugs or using the four motor position holes for secure fixation.

2. Adjustable Stroke and Thrust: With a stroke ranging from 10-150MM and thrust options between 20N-235N, this actuator provides versatility to cater to different requirements.

3. Dual-Speed Motor: Featuring a DC12V motor with both low and high-speed settings, the actuator offers flexibility in speed control. However, note that high-speed operation may result in increased noise levels.

4. Built-in Circuit Board: The actuator includes a built-in film circuit board that serves as an upper and lower limit mechanism, ensuring controlled and safe movement.

5. Durable Construction: Constructed with both outer and inner tubes made of aluminum alloy, the DHLA130 combines durability with a compact design. It finds common use in small load applications, including range hoods, toys, and Christmas tree decorations.

Product Description


PRODUCT DESCRIPTION

DHLA130 Micro electric linear actuator, there are two installation methods, one is through the lifting lugs, the second is through the four holes in the motor position to fix, the stroke is between 10-150MM, the thrust is between 235N-20N, This DC12V motor has a low speed and a high speed, so the noise is relatively large. The built-in film circuit board plays the role of upper and lower limit. The outer tube and the inner tube are made of aluminum alloy. This mini actuator is often used in small load fields such as range hoods, toys, Christmas trees, etc.

TECHNICAL PARAMETERS


VoltageDC12V
Speed (MM/S)15050281473.5
Load Push Capacity(N)8184080120180
Self-locking Capacity(N)610205070150
Stroke LengthStandard Type: 10MM,15MM,17.5MM,20MM,21MM,30MM,50MM,70MM,100MM,150MM,200MM
Motor Power5W
Operating Temperature-10℃~+50℃
Operating Frequency10% max 2min. continuous use
Inner TubeAluminum Tube
ColorBlack
MaterialAluminum
Limit SwitchesBuilt-in
Protection ClassIP43/IP60
NoiseBelow 55dB
NoteCustomized DC6V / DC24V above 100pcs
Mechanical LifeMore than 100,00 times


OUTLINE DIMENSION DRAWING
