DHLC1100Y Mobile Lifting Column 24V

Stroke:
  • 50MM
  • 100MM
  • 150MM
  • 200MM
  • 250MM
  • 300MM
  • 350MM
  • 400MM
  • 450MM
  • 500MM
  • 600MM
  • 700MM
  • 800MM
  • 900MM
  • 1000MM
  • 1100MM
  • 1200MM
  • 1300MM
  • 1400MM
Speed:
  • DC24V5MM/S
  • DC24V9MM/S
  • DC24V13MM/S
  • DC24V20MM/S

About this item

1. Composition: Combines DHLC1100 lifting column and roller skating base, featuring an integral die-casting resin base with over 300KG load capacity.

2. Silent Mobility: Equipped with four silent roller skates, ensuring smooth and noiseless movement.

3. Customizable Panel: Table frame panel options include 245*245MM/160*160MM iron panels (5MM thick) or 10MM thick aluminum panels. Table board measures 500*600MM, available separately.

4. Enhanced Features: Optional additions like IP66 waterproof/dustproof, Hall sensor, and limit feedback functions.

5. Efficient Performance: Utilizes a 24V motor with low power consumption, minimal noise, and high load capacity, combining durability with functionality.

Product Description

PRODUCT DESCRIPTION

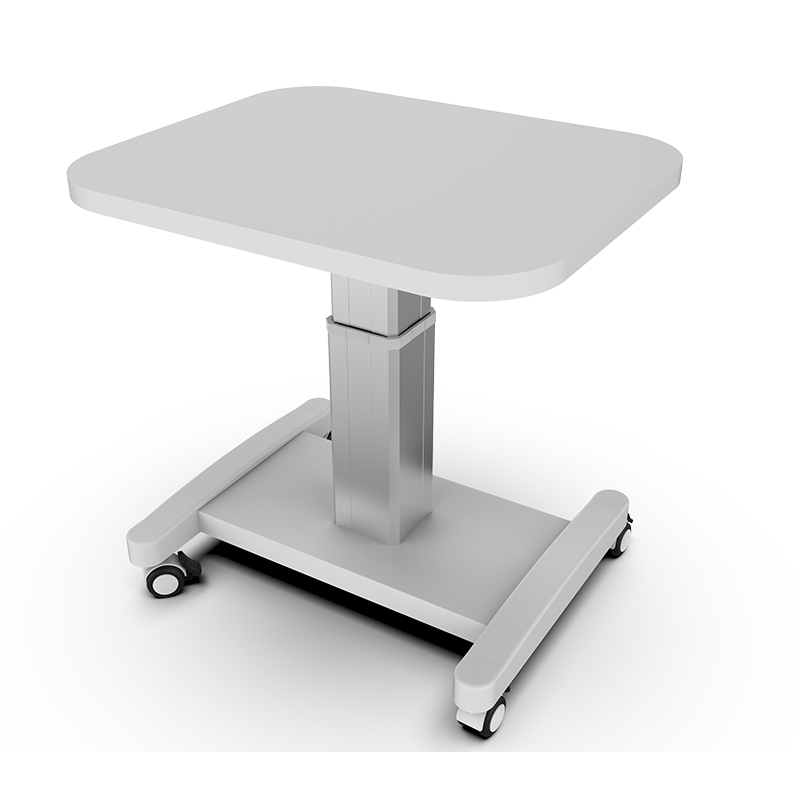

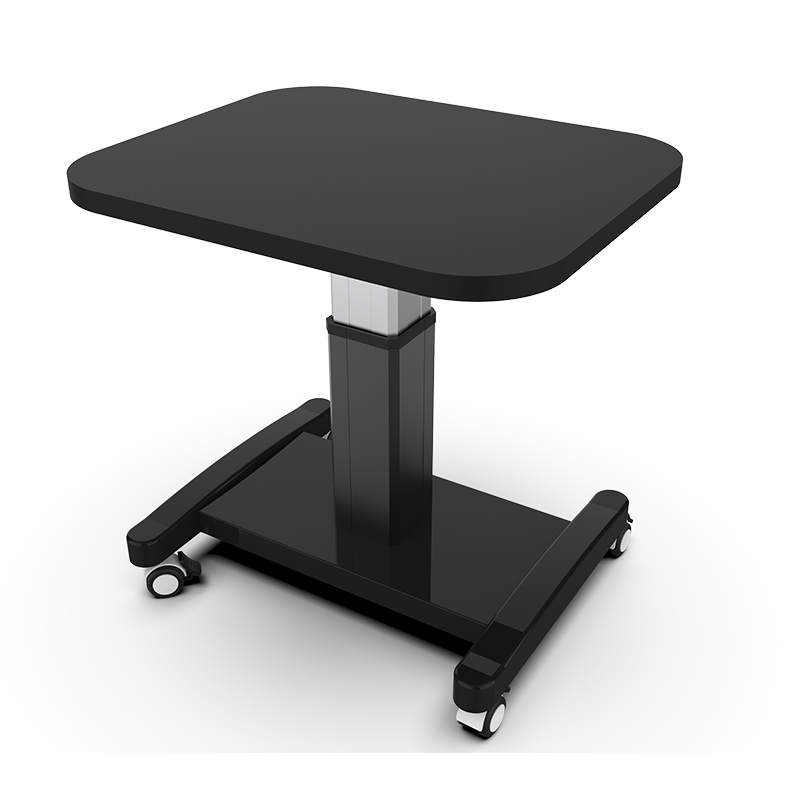

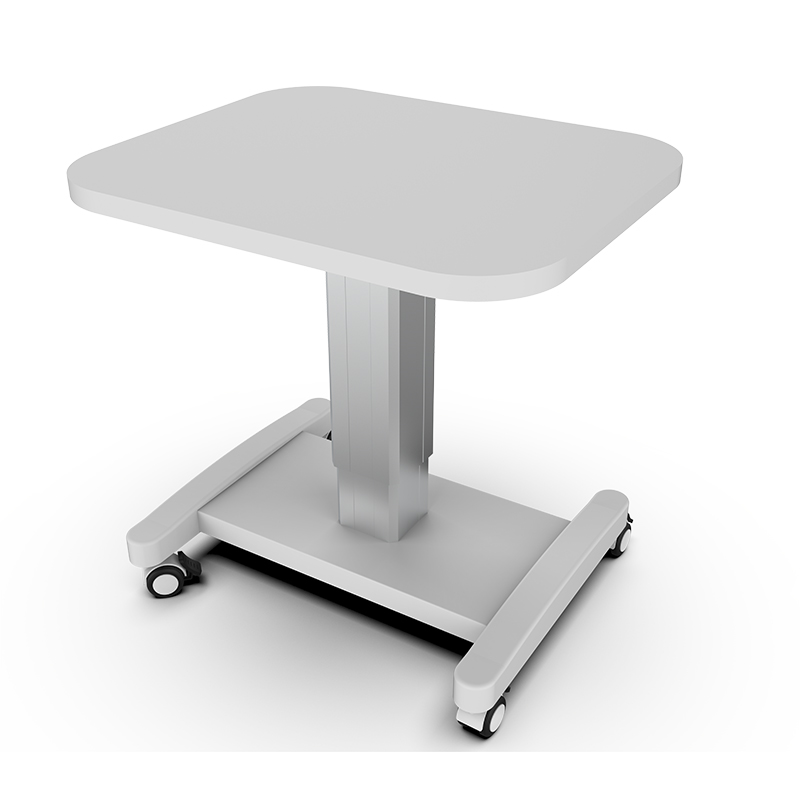

DHLC1100Y mobile electric lifting column is composed of DHLC1100 lifting column and roller skating base. The base is made of integral die-casting resin material. The load capacity can reach more than 300KG. It is equipped with four silent roller skates and has a beautiful appearance.
The movable electric lifting column table frame panel is divided into 245*245MM/160*160MM (default/material iron, thickness 5MM), the aluminum panel can be customized 10MM thick, and the table board is 500*600MM, which needs to be purchased separately, and the product can add IP66 Waterproof and dustproof/Hall sensor/limit feedback and other functions. The product adopts the characteristics of 24V motor with low power consumption, low noise and strong load capacity.

TECHNICAL PARAMETERS

VoltageDC24V
Speed (MM/S)591320
Load Pull Capacity(N)27001200800500
Self-locking Capacity(N)27001200800500
Operating Temperature-25°C~+65°C
IP GradeIP54 / IP66
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorSilver White
PanelsPowder Coating
Stroke Length50mm-1400mm
Optional FeaturesRebound orPause Vhen Encountering Obstacles
Hall Sensor (only 24V)
Upper And Lower Limit Feedback

OUTLINE DIMENSION DRAWING
