PRODUCT DESCRIPTION

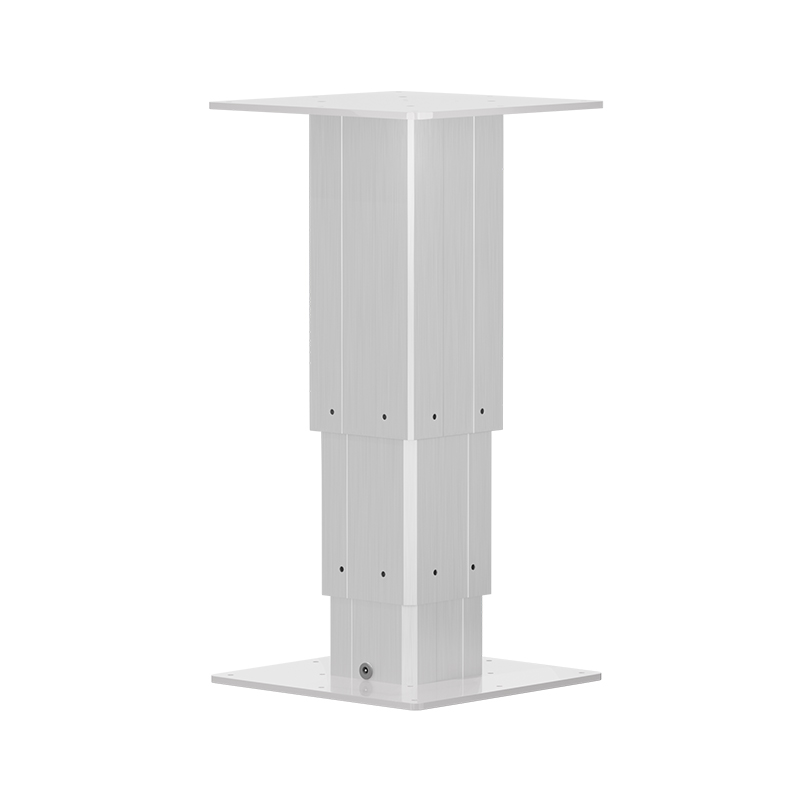

DHLCE Iron panel tatami electric lift is driven by DC24V/DC12V brush motor,and the internal screw rod is rotated through a gear box to realize the up and down process.Our tatami lift has two lifting methods,one is wireless remote control,and the other is the controller switch.The center lifting column is made of all-aluminum materials,and the exterior is made of metal wire drawing.The tatami electric lift has a variety of safety functions,such as automatic power-off protection,temperature control motor protection,overload protection and other functions to ensure safe and reliable use. DHLCE360/310/260 tatami lift use 3 section aluminum columns,DHLCE410 uses 2 section aluminum columns.
TECHNICAL PARAMETERS
| Model | DHLCE310A | |||
| Panel Size | 200*200 | |||
| Model | DHLCE310B | |||
| Panel Size | 160*160 | |||
| Initial Height H (MM) | 315 | |||
| Final Height FH(MM) | 690 | |||
| Stroke Length S (MM) | 375 | |||
| Section | 3 | |||
| No-Load Speed | 15V-5MM/S | 30V-5MM/S | 30V-12MM/S | |
| Max Load Capacity | 100KG | 160KG | 60KG | |
| Operating Temperature | -15°C ~ +65°C | |||
| Limit Switches | Built-in | |||
| Operating Frequency | 10% Work System, Maximum 1 Hour Continue Working | |||
| Color | Silver White | |||
| Material | Body Aluminum ，Panel Iron | |||
| Note | Other specifications, aluminum shell color, and connection Panel Size can be customized. | |||
