DHLCE-IR-410 3 Stage Electric Lifting Column--IR Panel 1V1 Hall

Model:

DHLCE410A
DHLCE410B

Speed:

15V-5MM/S
30V-5MM/S
30V-12MM/S

Add to Inquiry

About this item

1. Dual Power Options: Driven by a DC 24V / DC12V brush motor, this tatami electric lift employs an internal screw rod and gear box mechanism for seamless up and down movement.

2. Two Lifting Methods: Users can choose between wireless remote control or the controller switch for convenient and flexible operation.

3. All-Aluminum Construction: The center lifting column is constructed entirely from aluminum materials, with a stylish metal wire drawing finish on the exterior.

4. Safety Features: The tatami electric lift incorporates multiple safety functions, including automatic power-off protection, temperature control motor protection, and overload protection, ensuring secure and reliable usage.

Product Description

PRODUCT DESCRIPTION

DHLCE Iron panel tatami electric lift is driven by DC24V/DC12V brush motor,and the internal screw rod is rotated through a gear box to realize the up and down process.Our tatami lift has two lifting methods,one is wireless remote control,and the other is the controller switch.The center lifting column is made of all-aluminum materials,and the exterior is made of metal wire drawing.The tatami electric lift has a variety of safety functions,such as automatic power-off protection,temperature control motor protection,overload protection and other functions to ensure safe and reliable use. DHLCE360/310/260 tatami lift use 3 section aluminum columns,DHLCE410 uses 2 section aluminum columns.

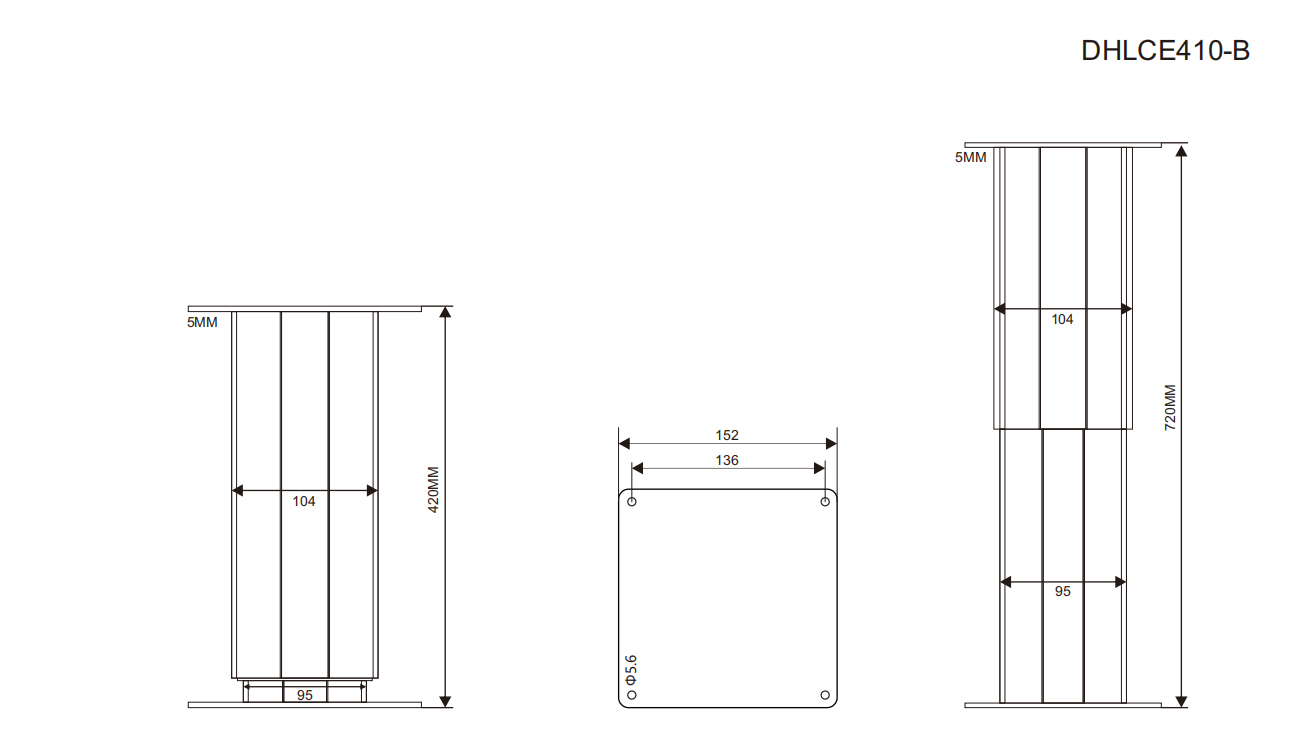

TECHNICAL PARAMETERS

Model	DHLCE410A
Panel Size	200*200
Model	DHLCE410B
Panel Size	152*152
Initial Height H (MM)	420
Final Height FH(MM)	720
Stroke Length S (MM)	300
Section	2
No-Load Speed	15V-4.5MM/S	27V-4.5MM/S	27V-9MM/S
Max Load Capacity	80KG	100KG	70KG
Operating Temperature	-15°C ~ +65°C
Limit Switches	Built-in
Operating Frequency	10% Work System, Maximum 1 Hour Continue Working
Color	Silver White
Material	Body Aluminum ，Panel Iron
Note	Other specifications, aluminum shell color, and connection Panel Size can be customized. The Max Load of 260A/260B DC30V-5MM/S is Less Than 100kg Will Cause Abnormal Noise lf Overload.
