| Voltage： | 24V |
| Current： | 1.25Amp |
| Max Load： | 100N |
| Max Speed： | 52 mm/s |
| Stroke： | 50-1000 mm |
1. Quiet Operation: Experience reduced noise levels with the DHLA1300, setting it apart from many other electric linear actuators available. Its 35dB low-noise DC motor ensures quieter operation without compromising performance.
2. Strong Self-Locking: Benefit from a substantial self-locking force that enhances stability and precision in various applications. The DHLA1300's design ensures secure locking to maintain desired positions effectively.
3. Adaptable Installation: Choose from multiple installation methods to suit your specific needs. The actuator supports Ф8 lifting lug installation, plate installation, and M6 thread installation, providing flexibility in various setups.
4. Efficient Design: The DHLA1300 features a square aluminum outer tube combined with a durable plastic gear box structure, contributing to its reliable performance and extended lifespan.
5. Affordability without Compromise: Enjoy the reliability and performance of an electric linear actuator without breaking the bank. The DHLA1300 offers cost-effective functionality, making it an excellent choice for budget-conscious projects.

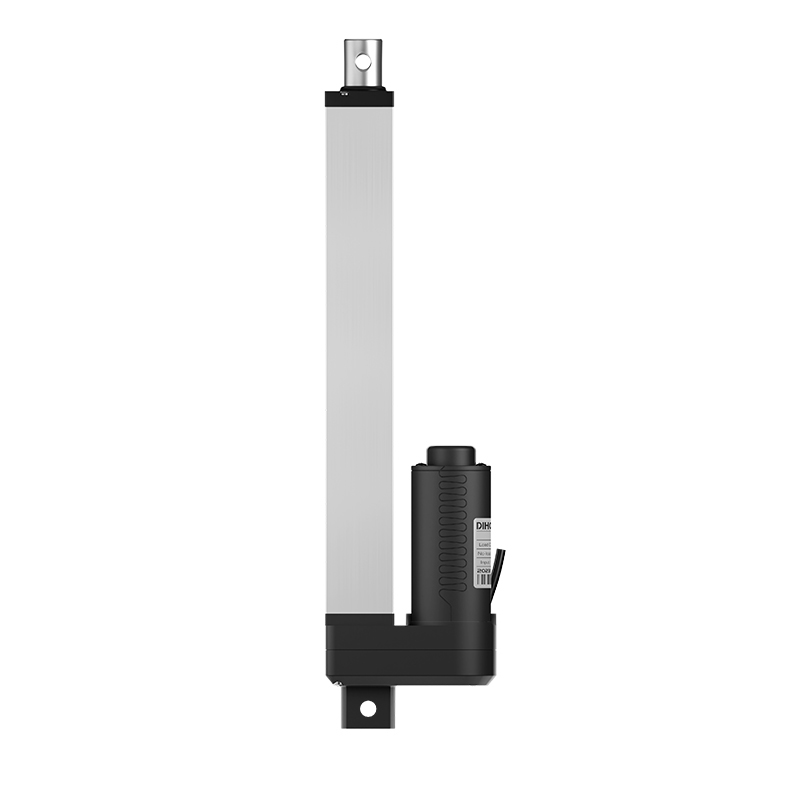

DHLA1300 is a cheap electric linear actuator, 30W motor 1500N load force. This product is less noisy than most electric linear actuators on the market, and has a large self-locking force. The outer tube adopts a square aluminum tube, a plastic gear box structure, and a 35dB low-noise DC motor. This linear actuator has a variety of installation methods: Ф8 lifting lug installation, plate installation, M6 thread installation
| Voltage | DC24V | ||||
| Speed (MM/S) | 5 | 12 | 25 | 40 | 52 |
| Load Pull Capacity(N) | 1500 | 1000 | 500 | 400 | 200 |
| Load Push Capacity(N) | 1500 | 1000 | 500 | 400 | 300 |
| Self-locking Capacity(N) | 1500 | 1000 | 500 | 400 | 300 |
| Self-locking Capacity(N) | 50mm-1000mm | ||||
| Motor Power | 30W | ||||
| Operating Temperature | -10°C~+55°C | ||||
| Limit Switches | Built-in | ||||
| IP Grade | IP43 | ||||
| Material | Aluminum | ||||
| Noise | ＜30dB | ||||
| Operating Frequency | 10%max 2min. continuous use | ||||
| Inner Tube | Aluminum Tube | ||||
| Lead Screw Type | Type T | ||||
| Mechanical Life | More than 50,000 times | ||||
| File name (click to view) | file type | File Download |
|---|---|---|
| DIHOOL-DHLA1300.pdf |
|
| File name (click to view) | file type | File Download |
|---|---|---|
| DHLA1300.html | html |
|
