1. Low-Noise Performance: Equipped with a 30dB low-noise plastic motor gear, the DHLA4000 ensures quiet and unobtrusive operation while maintaining exceptional performance.
2. Impressive Load Capacity: With a maximum load capability of 4000N, this electric linear actuator offers robust power to handle a wide range of tasks effectively.
3. Swift Movement: Achieve a maximum speed of 16MM/S, allowing for efficient and rapid linear motion suited for various applications.
4. Versatile Application: Ideal for medical, furniture, and industrial sectors, the DHLA4000 adapts seamlessly to different fields, meeting diverse needs.
5. Wide Automation Compatibility: Suitable for integration into automatic control systems, this actuator finds utility in windows of construction vehicles, cleaning vehicles, ships, and cargo holds, enhancing automation and convenience.

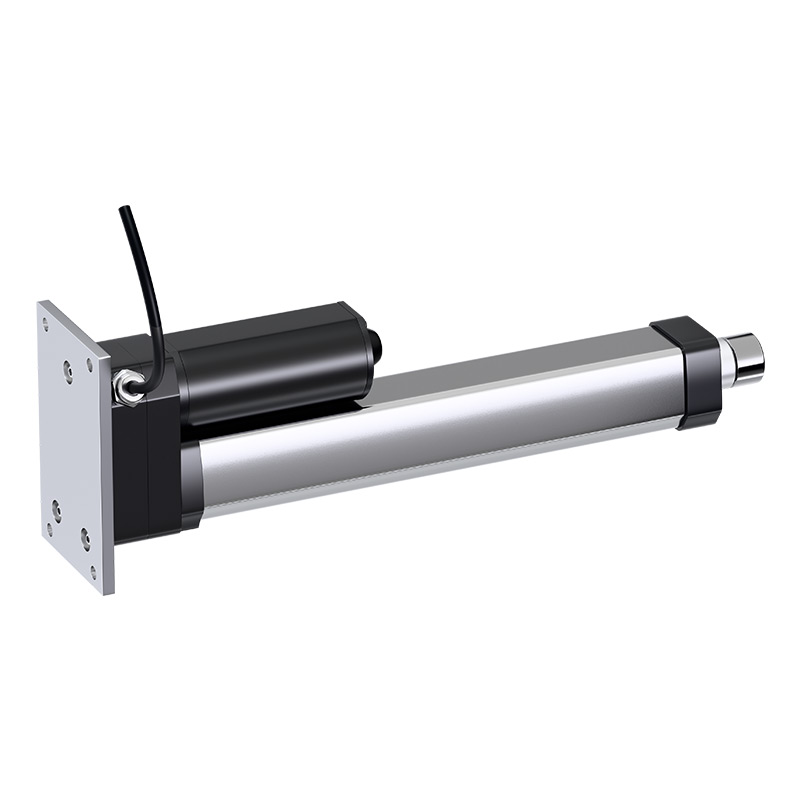

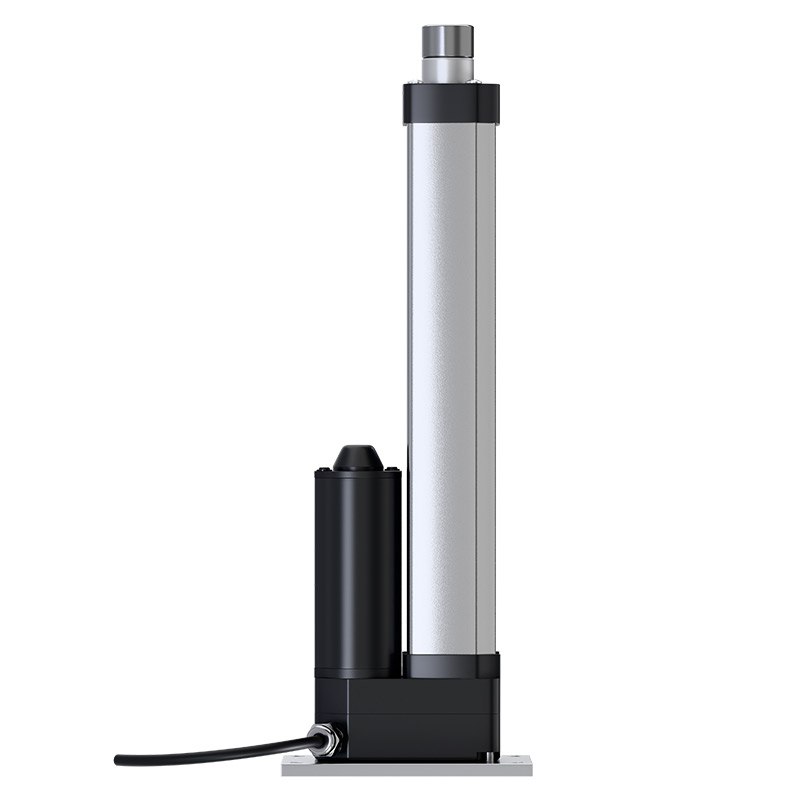

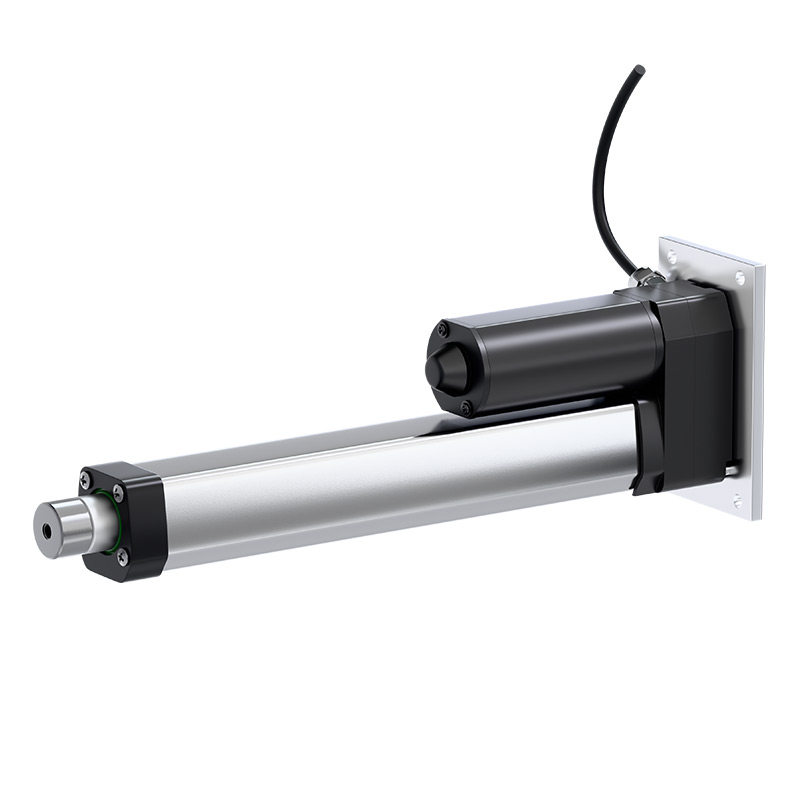

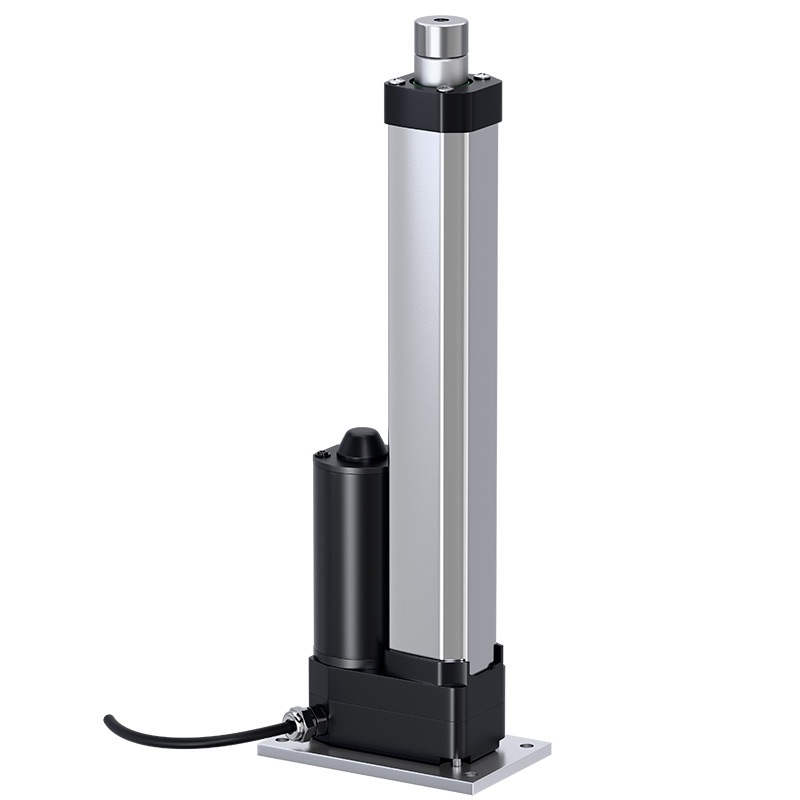

DHLA4000 electric linear actuator is a high-performance power transmission device. With IP67 protection rating, it effectively blocks dust and can be used in harsh environments such as wet and dusty conditions. The transmission gears are made of POM material, ensuring ultra-low operating noise ranging from 35 to 45 decibels. In terms of load capacity, this actuator excels with a maximum load capacity of 4000N and an impressive maximum self-locking capacity of 6000N, guaranteeing stable operation and reliable locking when power is interrupted.
Furthermore, the DHLA4000 supports personalized customization. Users can flexibly choose Hall encoder motors to achieve precise displacement control. It also allows for the addition of upper and lower limit feedback functions, which monitor the actuator's position in real-time to prevent over-travel. Widely applied in smart homes, industrial automation, medical devices, and other fields, the DHLA4000 provides users with efficient, safe, and intelligent transmission solutions.
| Voltage | DC20~32V | ||
| Speed (MM/S) | 5 | 10 | 16 |
| Load Pull Capacity(N) | 4000 | 2500 | 2000 |
| Load Push Capacity(N) | 4000 | 2500 | 2000 |
| Self-locking Capacity(N) | 6000 | 3000 | 2400 |

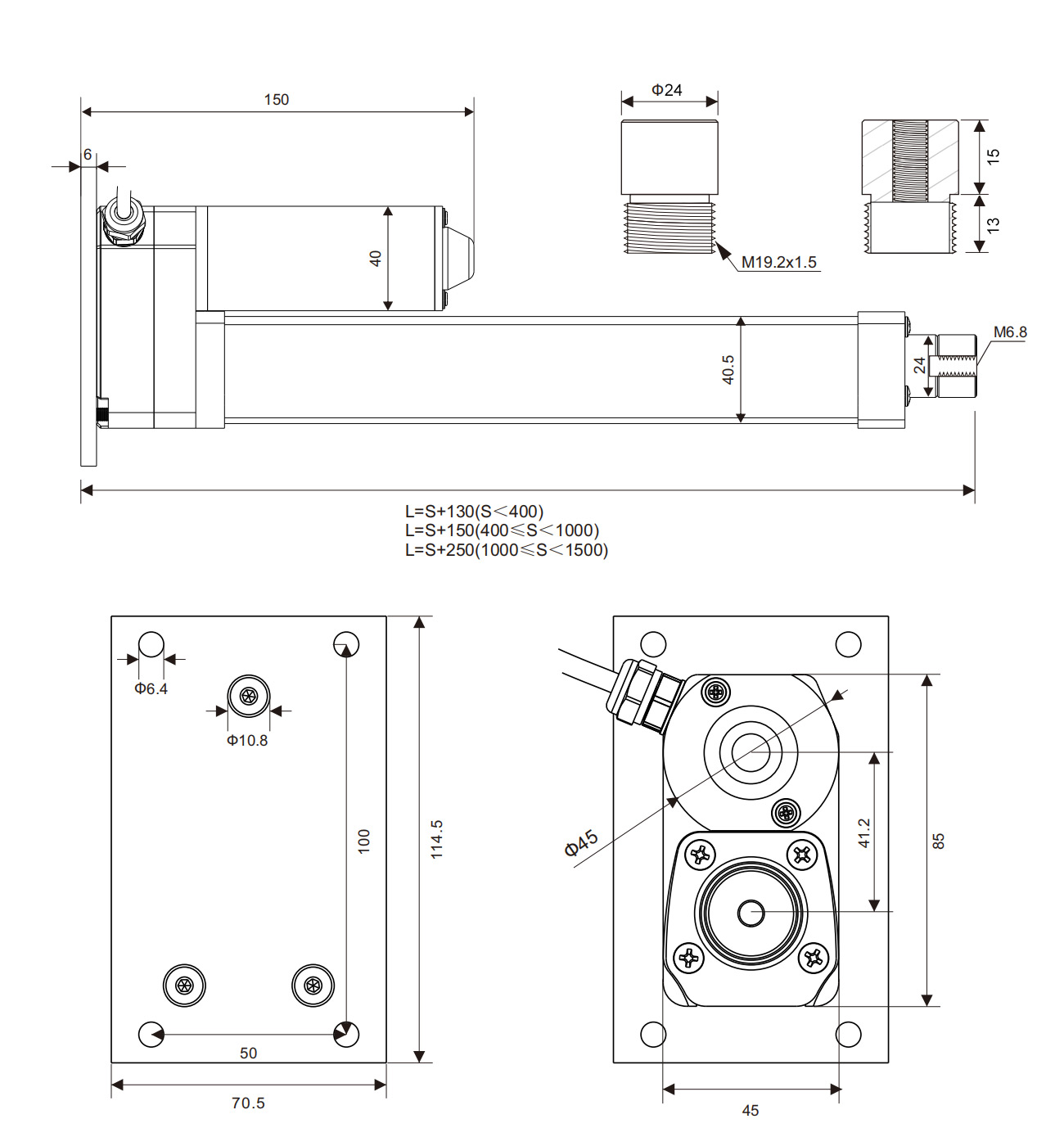

| Stroke Length | 50mm-1000mm (≥800mm stroke, Max load 2000N) | ||
| Motor Power | 90W | ||
| Operating Temperature | 0°C~+40°C | ||
| Limit Switches | Built-in | ||
| IP Grade | IP65 (Default) | IP54 | IP66 | IP67 (IP65 is the default, other options are available. Please contact us to change it.) | ||
| Noise | 30dB | ||
| Operating Frequency | 10% max 10min. continuous use | ||
| Inner Tube | Aluminum tube | ||
| Lead screw Type | Type T | ||
| Mechanical Life | More than 20,000 times | ||
| Optional Configuration | ⚫ Hall Sensor ⚫ Magnetic Induction Switch ⚫ Upper and lower limit feedback | ||
