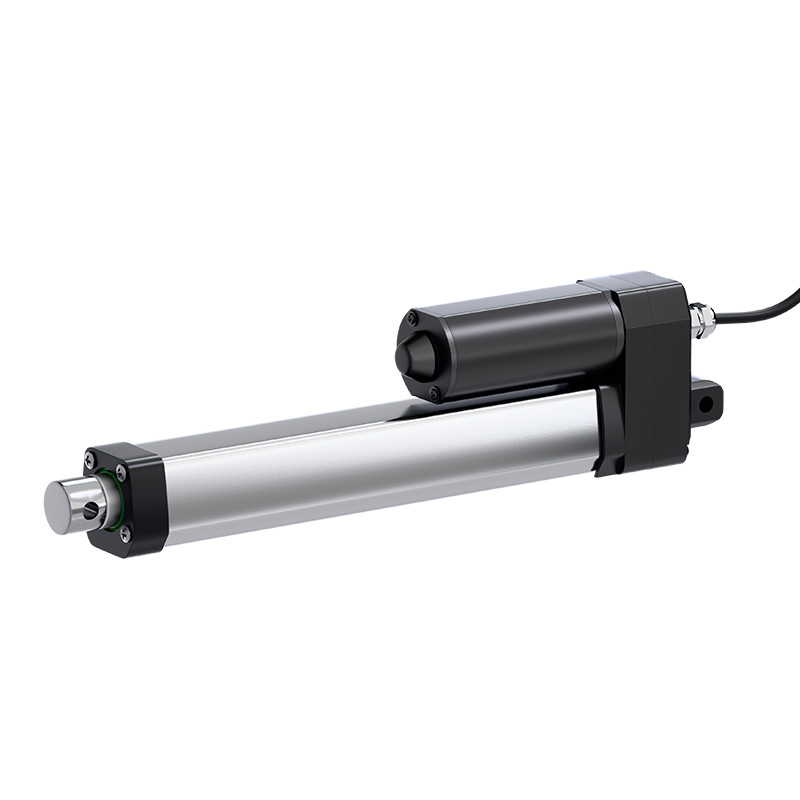

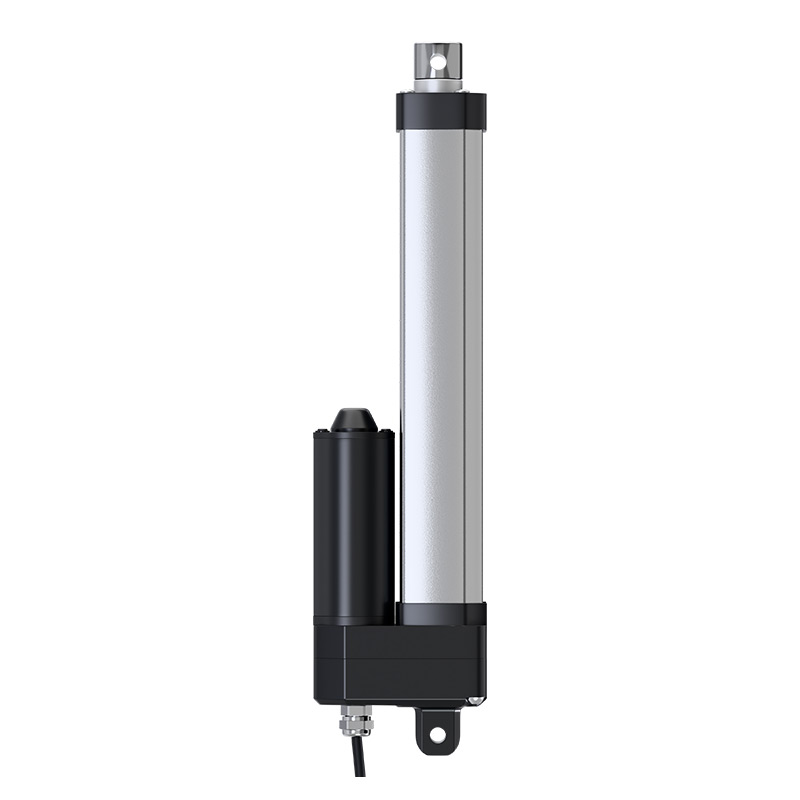

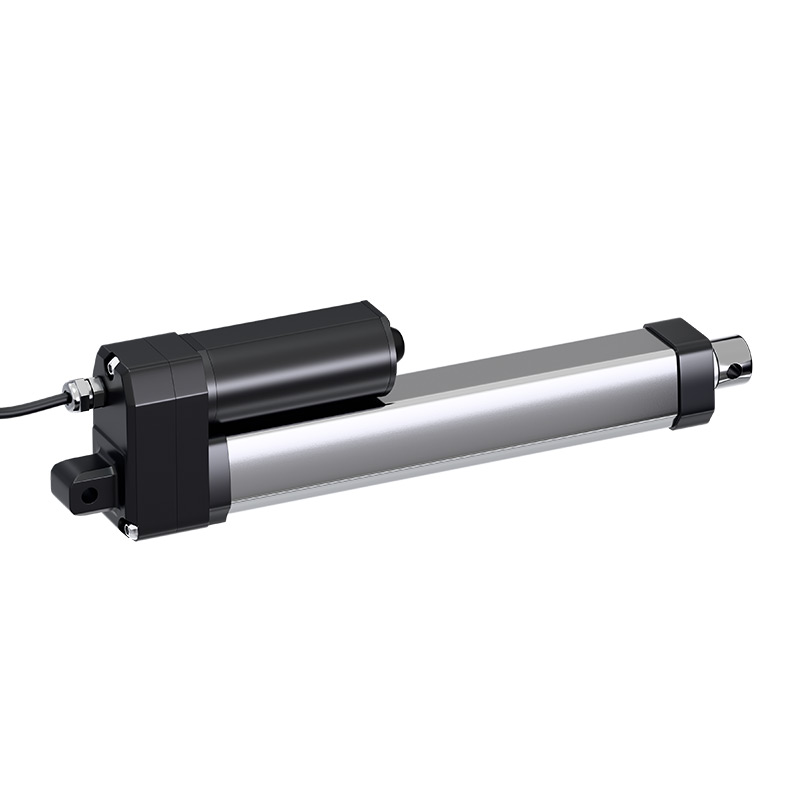

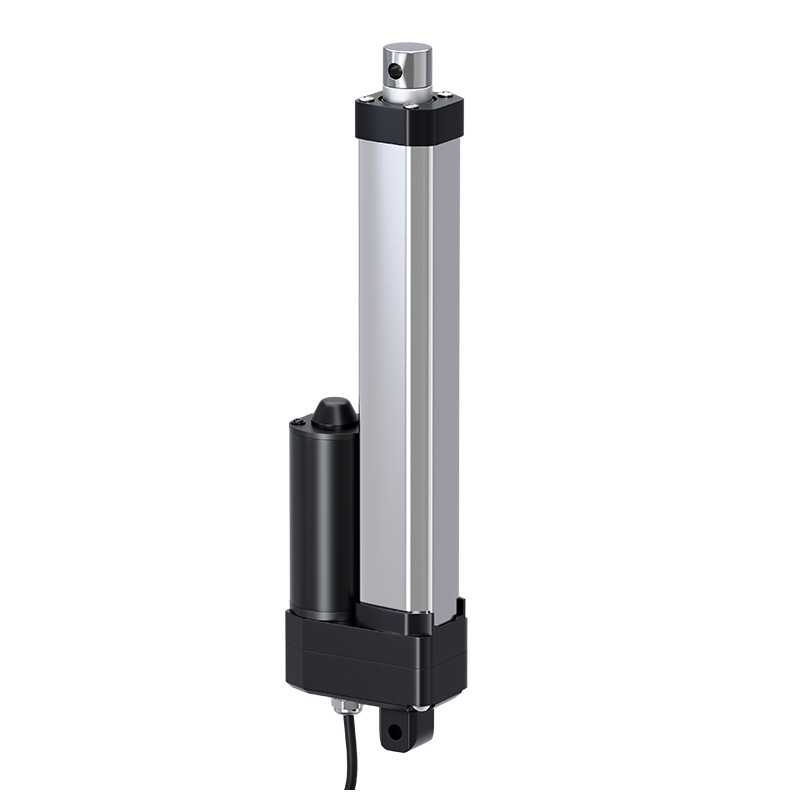

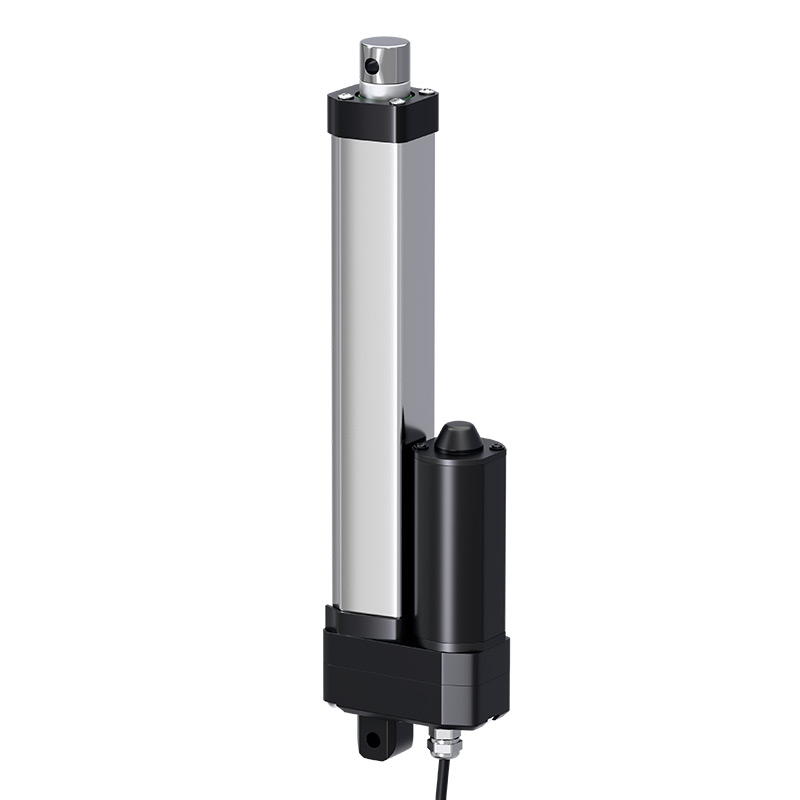

1. Low-Noise Design: The DHLA4000 electric linear actuator boasts an innovative 30dB low-noise design, ensuring quiet operation while maintaining high performance. This design makes it suitable for applications where noise reduction is a priority.
2. High-Torque Motor: Equipped with a robust 90W high-torque permanent magnet DC motor, this actuator delivers impressive power for various tasks. Its high torque capabilities contribute to its reliable and efficient performance.
3. Versatile Load Capacity: With a maximum load capacity ranging from 2000N to 4000N, the DHLA4000 can handle substantial loads. This makes it suitable for a wide range of applications across different industries.
4. Adjustable Speed: The actuator's maximum speed of 16MM/S allows for swift and precise linear movement. This adjustable speed feature enables it to cater to tasks requiring both rapid and controlled motion.
5. Enhanced Durability and Aesthetics: The outer aluminum tube of the DHLA4000 undergoes 27 oxidation processes, resulting in a high-hardness surface that ensures durability. Moreover, the actuator features an elegant appearance. Additionally, the option to use a 304 stainless steel inner tube further enhances its durability, making it suitable for use even in harsh industrial environments.
DHLA4000 electric linear actuator is a high-performance power transmission device. With IP67 protection rating, it effectively blocks dust and can be used in harsh environments such as wet and dusty conditions. The transmission gears are made of POM material, ensuring ultra-low operating noise ranging from 35 to 45 decibels. In terms of load capacity, this actuator excels with a maximum load capacity of 4000N and an impressive maximum self-locking capacity of 6000N, guaranteeing stable operation and reliable locking when power is interrupted.
Furthermore, the DHLA4000 supports personalized customization. Users can flexibly choose Hall encoder motors to achieve precise displacement control. It also allows for the addition of upper and lower limit feedback functions, which monitor the actuator's position in real-time to prevent over-travel. Widely applied in smart homes, industrial automation, medical devices, and other fields, the DHLA4000 provides users with efficient, safe, and intelligent transmission solutions.
| Voltage | DC20~32V / DC10~20V | ||
| No-load Speed (MM/S) | 5 | 10 | 16 |
| Load Pull Capacity (N) | 4000 | 2500 | 2000 |
| Load Push Capacity (N) | 4000 | 2500 | 2000 |
| Self-locking Capacity (N) | 6000 | 3000 | 2400 |
| Stroke Length | 50-1000MM (≥800MM Stroke Max Load 2000N) | ||
| Noise | 30dB | ||
| Motor Power | 90W | ||
| Limit Switches | Built-in | ||
| Operating Frequency | 10% max 10min. continuous use | ||
| Operating Temperature | 0°C~+40°C | ||
| IP Grade | IP54 | IP65 | IP66 | IP67 | ||
| Inner Tube | Aluminum Tube | ||
| Lead Screw Type | Type T | ||
| Mechanical Life | More than 20,000 times | ||
| Optional Configuration | ● Hall Sensor ● Magnetic Induction Switch ● Upper and lower limit feedback | ||
