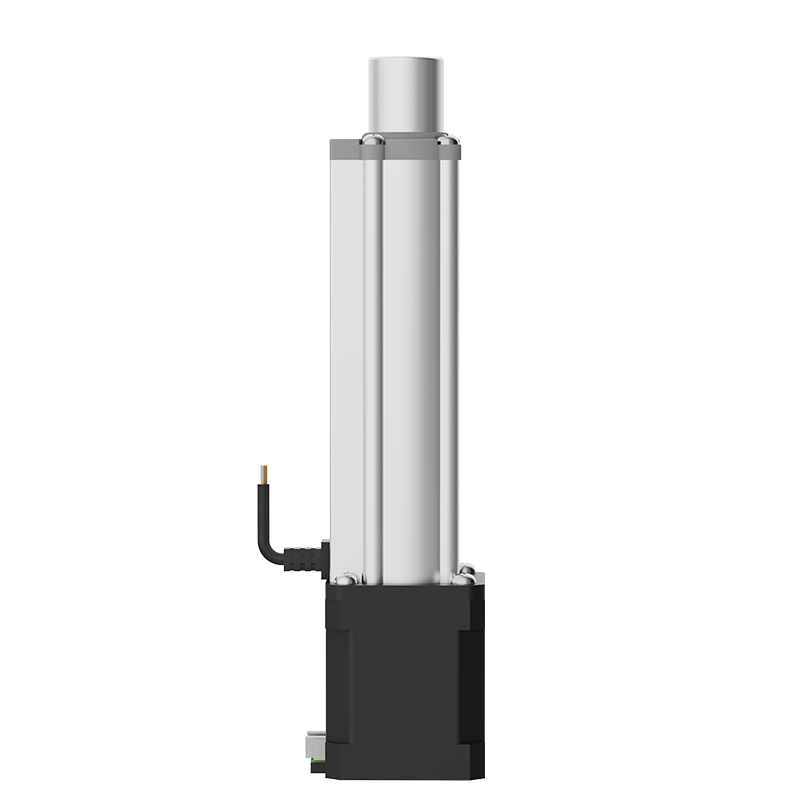

1. Stepper Motor Drive: The DHLA42 is an electric linear actuator powered by a 42 stepper motor, ensuring precise and controlled movement.
2. Impressive Performance: With a maximum load capacity of 400N and a swift maximum speed of 80MM/s, this actuator offers both power and speed.
3. Limit Feedback Mechanism: Equipped with a 4-pin lead wire (A+ A- B+ B-) at the motor end and three leads (Yellow: Public Port | Red: Lower Limit Switch | White: Upper Limit Switch), providing essential limit feedback functionality.
4. Compatible Components: Match the stepper motor actuator with a suitable driver and controller for controlled lifting. The drive current must exceed 2A for optimal performance.
5. Wide Application: Stepper motor linear actuators find their application in various scenarios including 3D printers, inkjet printing, and 3D modeling, where constant speed adjustments are crucial.
DHLA42 is an electric linear actuator driven by 42 stepper motor, maximum load 400N and maximum speed 80MM/s. The motor end is controlled by a 4-pin lead wire (A+ A- B+ B-), and the screw part is out of the wire. For the three leads (Yellow: Public Port | Red: Lower Limit Switch | White: Upper Limit Switch) to play the role of limit feedback, the stepper motor actuator needs to be matched with the driver and the controller for lifting, and the drive current needs to be greater than 2A.
Stepper motor linear actuator are mainly used in 3D printers, inkjet printing, 3D three-dimensional models and other environments that require constant speed adjustment.
| Voltage | DC9-32V |
| Motor | 42HB34 |
| Motor Torque | 0.31NM |
| Maximum Thrust (N) | 150 |
| Max Speed (MM/S) | 30 |
| Inner Tube | Aluminum tube |
| Operating Temperature | 0°C~+40°C |
| Stroke Length | 50mm-800mm |
| Limit Switches | Without (Optional) |
| Lead Screw Type | T Type Five Head Screw Rod |
| IP Grade | IP43 |
| Material | Aluminum |
| Noise | 30dB |
| Mechanical Life | More than 30,000 times |
| File name (click to view); | file type | File Download |
|---|---|---|
| DIHOOL-DHLA42.pdf |
|
| File name (click to view) | file type | File Download |
|---|---|---|
| DHLA42-A1.html | HTML |
|
| DHLA42-A2.html | HTML |
|
| DHLA42-A1.STEP | STP |
|
| DHLA42-A2.STEP | STP |
|
