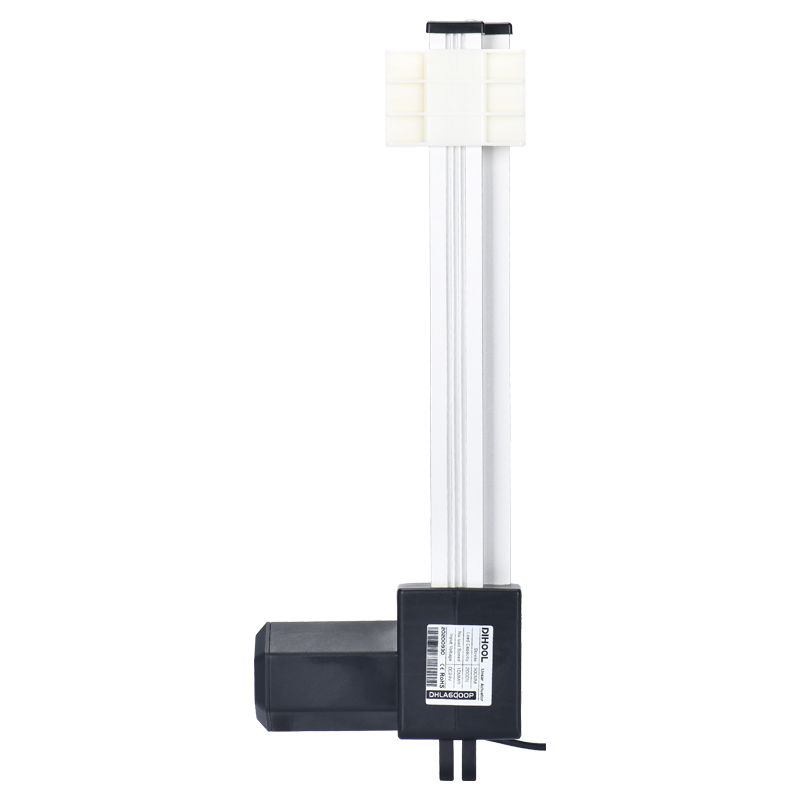

DHLA6000P Track Sliding Linear Actuator 24V A1

Stroke:
  • 50MM
  • 100MM
  • 150MM
  • 200MM
  • 250MM
  • 300MM
  • 350MM
  • 400MM
  • 450MM
  • 500MM
  • 600MM
  • 700MM
  • 800MM
  • 900MM
  • 1000MM
Speed:
  • 5MM/S
  • 6MM/S
  • 9MM/S
  • 12.5MM/S
  • 28MM/S


Voltage:24V
Current:5Amp
Max Load:6000N
Max Speed:28MM/S
Stroke:30-1000MM



About this item

1. High-Power Motor: Equipped with a 60W high-power permanent magnet DC motor, the DHLA6000P delivers remarkable strength, ensuring reliable operation.

2. Impressive Load and Speed: With a maximum load capacity of 6000N and a top speed of 28MM/S, this actuator offers both power and speed for efficient movement.

3. Versatile Mounting: The sliding table features 2 M8 threaded and 1 M10 threaded mounting holes, enhancing installation flexibility. A front-end mounting bracket and M10 lifting lugs at the tail further aid in secure positioning.

4. Customizable Stroke: The DHLA6000P offers a stroke range of 50-1000MM, allowing customization to match specific customer requirements.

5. Wide Range of Applications: Flat push-type electric actuators find utility in various applications, including lifting TV stands, functional sofas, massage chairs, and moxibustion beds, showcasing their versatility and reliability.

Product Description

PRODUCT DESCRIPTION

DHLA6000P is an electric linear actuator with sliding table. It is equipped with a 60W high-power permanent magnet DC motor with a maximum load of 6000N and a maximum speed of 28MM/S. The sliding table has 2 M8 threaded and 1 M10 threaded mounting holes, the front end of the actuator has a mounting bracket, and the tail has M10 lifting lugs. The stroke range is 50-1000MM, which can be customized according to customer needs. Flat push type electric actuators are widely used in lifting TV stands, functional sofas, massage chairs, moxibustion beds, etc.

TECHNICAL PARAMETERS

VoltageDC24V
Speed (MM/S)56912.528
Load Pull Capacity(N)60004000300020001000
Load Push Capacity(N)60004000300020001000
Self-locking Capacity(N)4000200020001000500
Stroke Length30mm-1000mm
Motor Power100W
Operating Temperature-10°C~+55°C
Operating Frequency10% max 2min. continuous use
ColorBlack and off-white
Limit SwitchesBuilt-inV
Protection classIP43
MaterialAluminum
Material30dB
Lead Screw TypeTurbine screw
Mechanical LifeMore than 100,00 times

OUTLINE DIMENSION DRAWING
