| Voltage： | 24V |
| Current： | 0.8Amp |
| Max Load： | 1000N |
| Max Speed： | 90MM/S |
| Stroke： | 30-800MM |

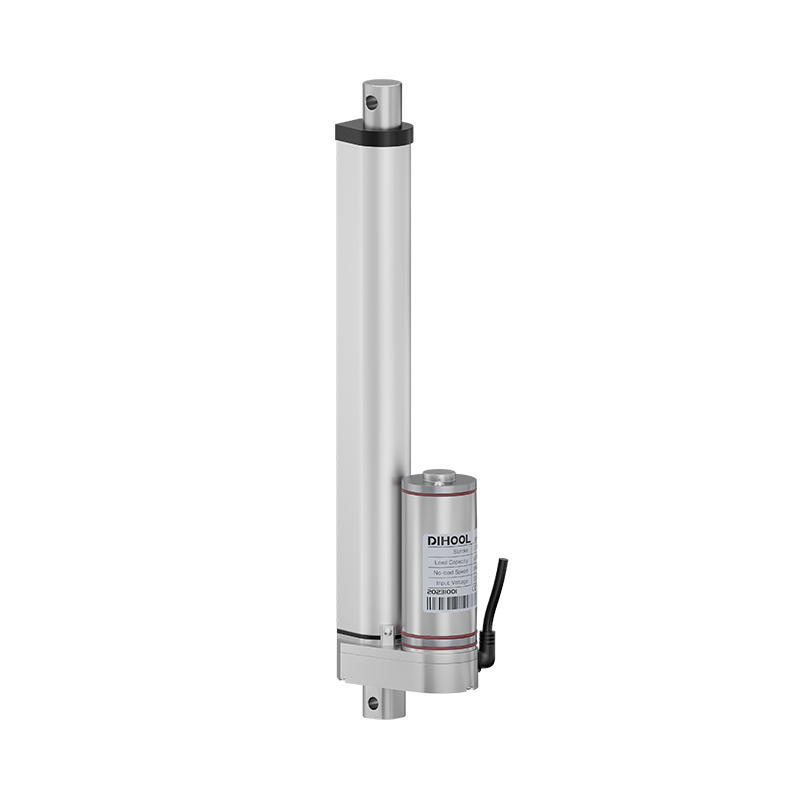

1. Gearbox-Free Design: The DHLA750 electric linear actuator features a direct motor-to-drive shaft mechanism, eliminating the need for a gearbox structure.
2. Improved Noise Levels: Through structural modifications, our company has significantly reduced noise levels. The product's noise has been lowered from 50dB to 40dB, enhancing usability.
3. Enhanced Load Capacity: The DHLA750 has undergone enhancements to its structure, resulting in an increased load capacity. It can now achieve a maximum load force of 1500N.
4. Strong Self-Locking: With a self-locking force of 100KG, this actuator ensures secure positioning and stability during operation.
5. Wide Industrial Applicability: Tailored for construction machinery, agricultural equipment, and environmental protection industries, the DHLA750 proves versatile and reliable across various sectors.
DHLA750 electric linear actuator was first developed. The product has no gearbox structure. The motor directly drives the drive shaft to work. The noise is relatively large. Our company has reduced the noise through multiple modifications to the structure and improved the load capacity of the product. The maximum load force can reach 1500N, and the self-locking force is 100KG,Noise reduced from 50db to 40dB. This product is suitable for construction machinery, agricultural machinery, environmental protection and other industries.
| Voltage | DC24~32V | |||||
| Speed (MM/S) | 5 | 10 | 20 | 30 | 50 | 90 |
| Load Pull Capacity(N) | 1000 | 700 | 350 | 200 | 150 | 70 |
| Load Push Capacity(N) | 1500 | 1000 | 500 | 300 | 200 | 100 |
| Self-locking Capacity(N) | 1000 | 700 | 350 | 200 | 150 | 70 |
| Stroke Length | 30mm-800mm | |||||
| Motor Power | 20W | |||||
| Limit Switches | Built-in | |||||
| Material | Aluminum | |||||
| Noise | 45dB | |||||
| Inner Tube | Aluminum Tube | |||||
| Operating Temperature | 0°C~+40°C | |||||
| Operating Frequency | 10% max 2min. continuous use | |||||
| Lead Screw Type | Type T | |||||
| Mechanical Life | More than 30,000 times | |||||
Magnetic Induction Switch ,Upper and lower limit feedback
| File name (click to view); | file type | File Download |
|---|---|---|
| DIHOOL-DHLA1300.pdf |
|
| File name (click to view) | file type | File Download |
|---|---|---|
| DHLA750-A1.html | HTML |
|
| DHLA750-A2.html | HTML |
|
| DHLA750-A1.STEP | STP |
|
| DHLA750-A2.STEP | STP |
|
