PRODUCT DESCRIPTION
DHLA8000L is a high-thrust electric linear actuator. The center telescopic tube is designed with 304 stainless steel tube and plastic dust cover. The center tube is not fixed and can be rotated. It is installed with Ф10 ears. It is equipped with a 60W silent high-power DC motor. It uses plastic gears. The maximum load is 8000N and the maximum speed is 36MM/S. The stroke is optional from 50MM to 800MM. Other non-standard itineraries can be customized according to needs. Mainly used in massage chairs, massage beds, nursing beds, window openers and other places.
TECHNICAL PARAMETERS
| Voltage | DC24V | ||||||||
| Speed (MM/S) | 5 | 8 | 10 | 15 | 20 | 24 | 30 | 40 | 60 |
| Load Pull Capacity(N) | 7000 | 6000 | 5000 | 3000 | 2500 | 2000 | 1500 | 1200 | 400 |
| Load Push Capacity(N) | 8000 | 7000 | 6000 | 4000 | 3000 | 2500 | 2000 | 1500 | 500 |
| Self-locking Capacity(N) | 8000 | 7000 | 6000 | 4000 | 3000 | 2500 | 2000 | 1500 | 500 |
| Stroke Length | 50mm-1000mm (Optional >400) | ||||||||
| Motor Power | 150W | ||||||||
| Operating Temperature | -25°C~+65°C | ||||||||
| Operating Frequency | 10% max 2min. continuous use | ||||||||
| Color | Black And White | ||||||||
| Limit Switches | Built-in | ||||||||
| Protection class | IP54 | ||||||||

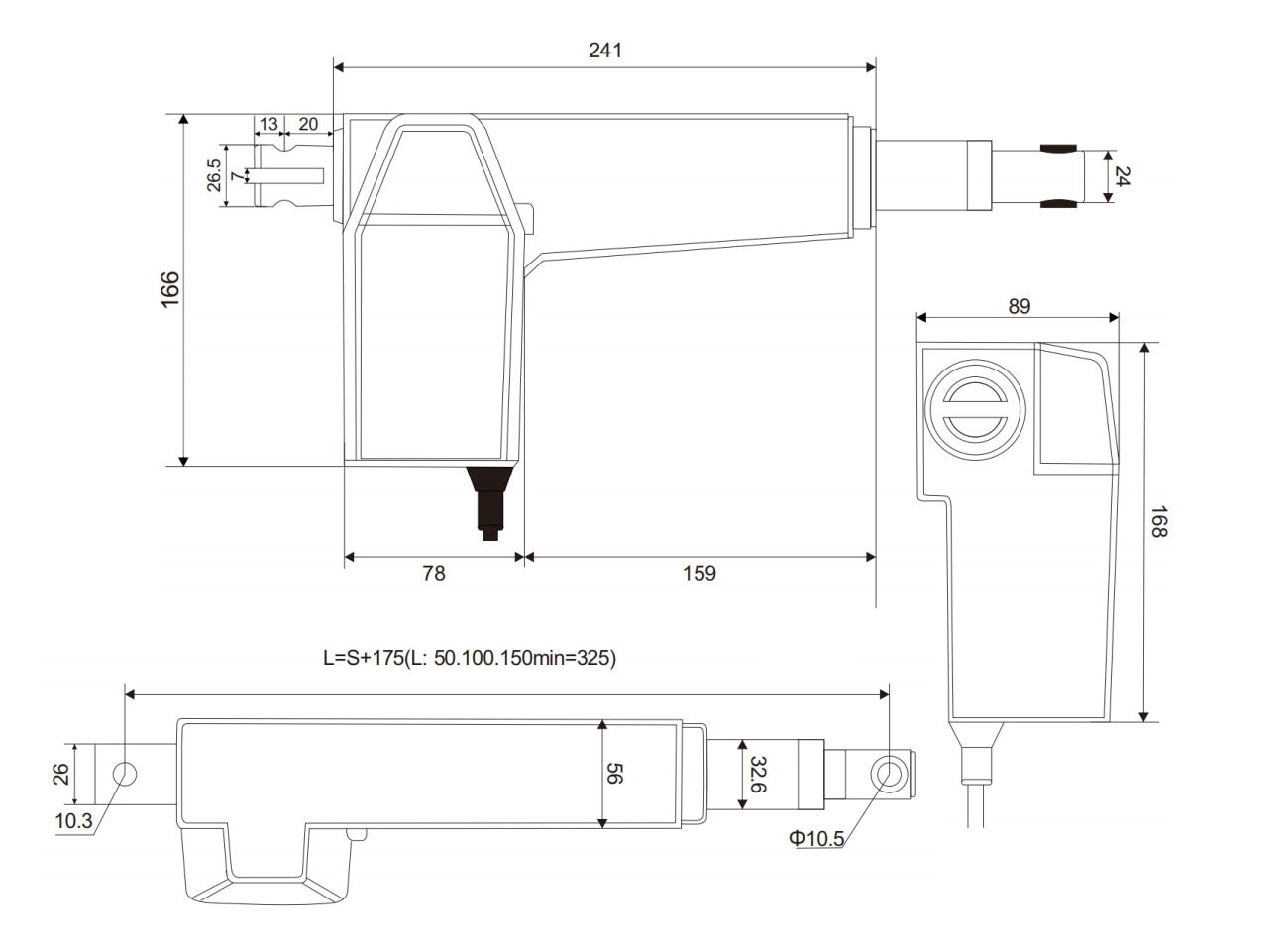

OUTLINE DIMENSION DRAWING
