DHLA3000P Track Sliding Linear Actuator 12V A1

Stroke:

50MM
100MM
150MM
200MM
250MM
300MM
350MM
400MM
450MM
500MM
600MM
700MM
800MM
900MM
1000MM

Speed:

5MM/S
10MM/S
20MM/S
30MM/S
40MM/S
66MM/S

Add to Inquiry

Voltage：	12V
Current：	5Amp
Max Load：	2400N
Max Speed：	66MM/S
Stroke：	30-1000MM

About this item

1. High Thrust Performance: The DHLA3000P features a 60W high-power motor capable of handling a maximum load of 300kg, providing robust thrust for various applications.

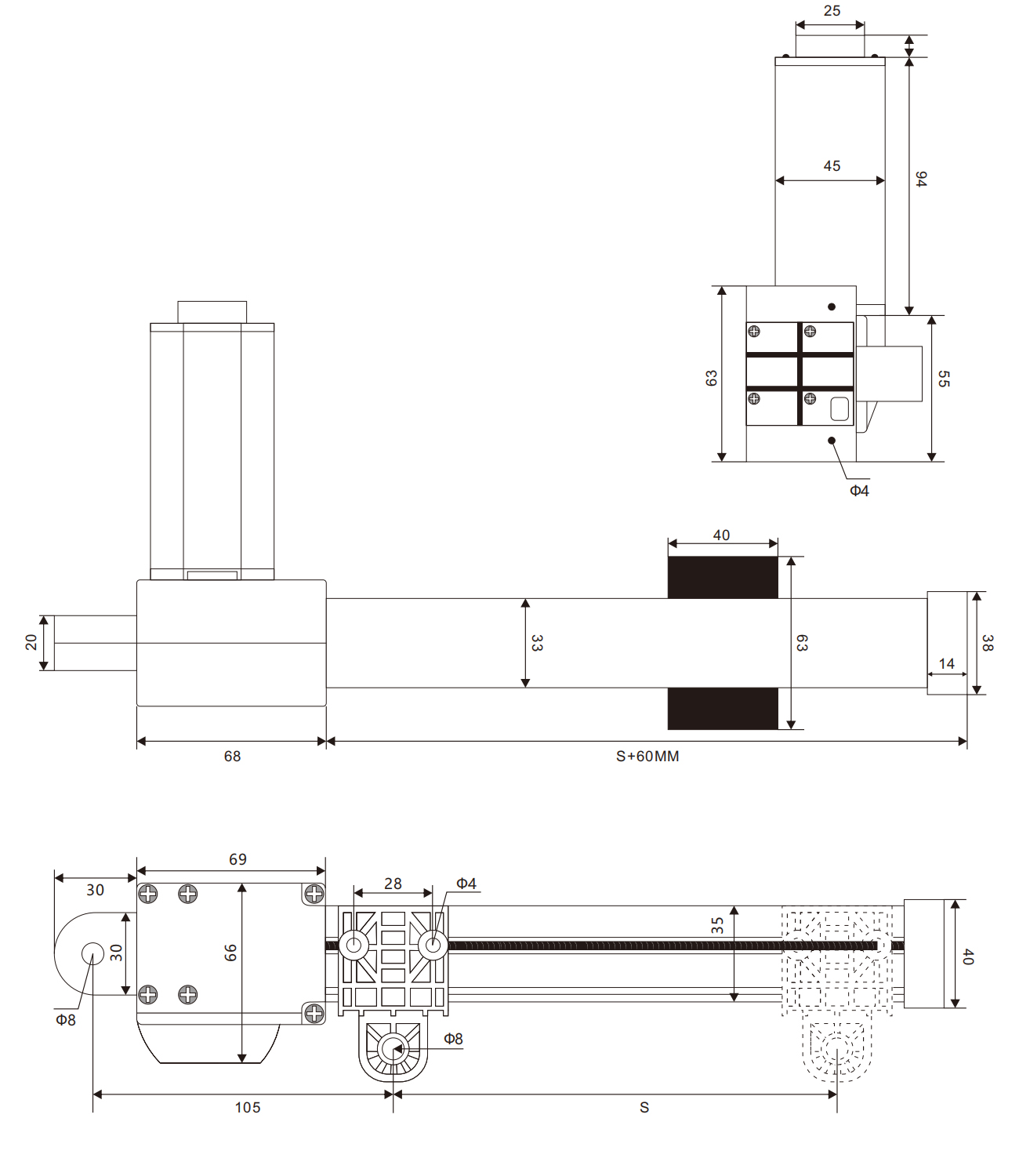

2. Compact Installation Size: This product boasts a compact design with a minimum installation distance of just 105mm, making it suitable for installations with limited space.

3. Customizable Stroke: The stroke can be customized to meet specific customer requirements, ensuring flexibility for different applications.

4. High-Horsepower Permanent Magnet DC Motor: Equipped with a high-horsepower permanent magnet DC motor, it delivers outstanding performance and reliability, suitable for applications in the medical, furniture, and industrial sectors, among others.

5. Ultra-Quiet Design: The DHLA3000P incorporates an ultra-quiet design, ensuring low noise during operation and making it suitable for environments where quiet operation is essential.

Product Description

PRODUCT DESCRIPTION

DHLA3000P is a self-developed high-thrust electric sliding table linear actuator. The product With 60W Power Motor, maximum load of 300kg, and minimum installation distance of 105mm. The stroke can be customized according to customer needs. This product has a compact installation size, a high-horsepower permanent magnet DC motor, and an ultra-quiet design. Suitable for medical, furniture, industrial and other industries.

TECHNICAL PARAMETERS

Voltage	DC12~19V
No-load Speed (MM/S)	5	10	20	30	40	66
Load Pull Capacity (N)	2400	1000	600	400	300	200
Load Push Capacity (N)	2400	1000	600	400	300	200
Self-locking Capacit y(N)	2400	1200	800	600	400	300
Stroke Length	30MM-1000MM
Operating Temperature	-20°C~+65°C
Limit Switches	Built-in
Operating Frequency	10% max 2min continuous use
Inner Tube	Aluminum tube
Lead Screw Type	Type T
The gray bottom can be equipped with a Hall sensor switch, the sound is low, mainly because the Hall motor is stocked, and the other can also be equipped with a Hall controller, the minimum order is 100 pieces.
