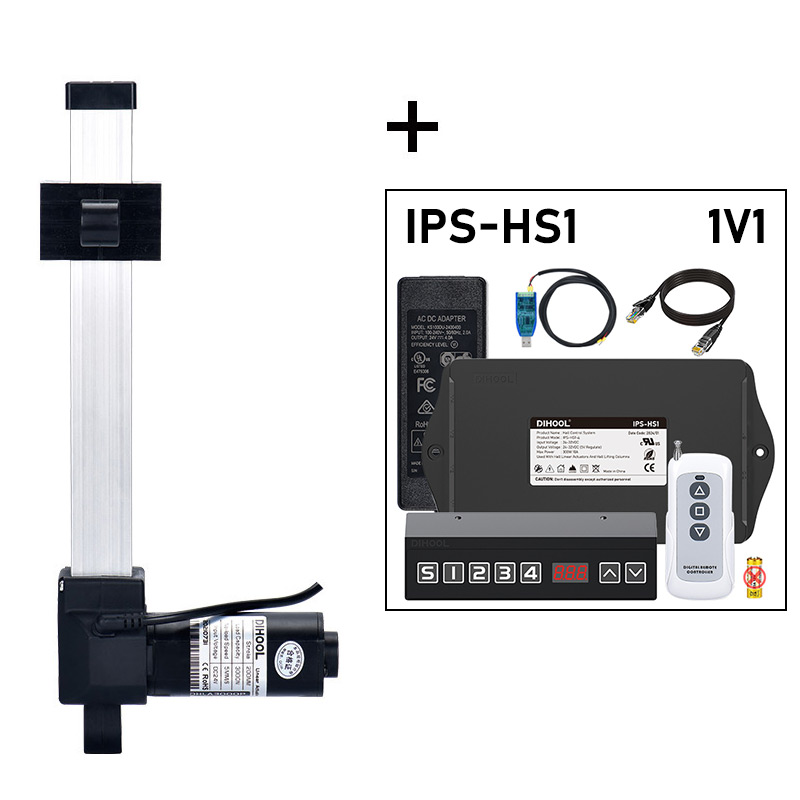

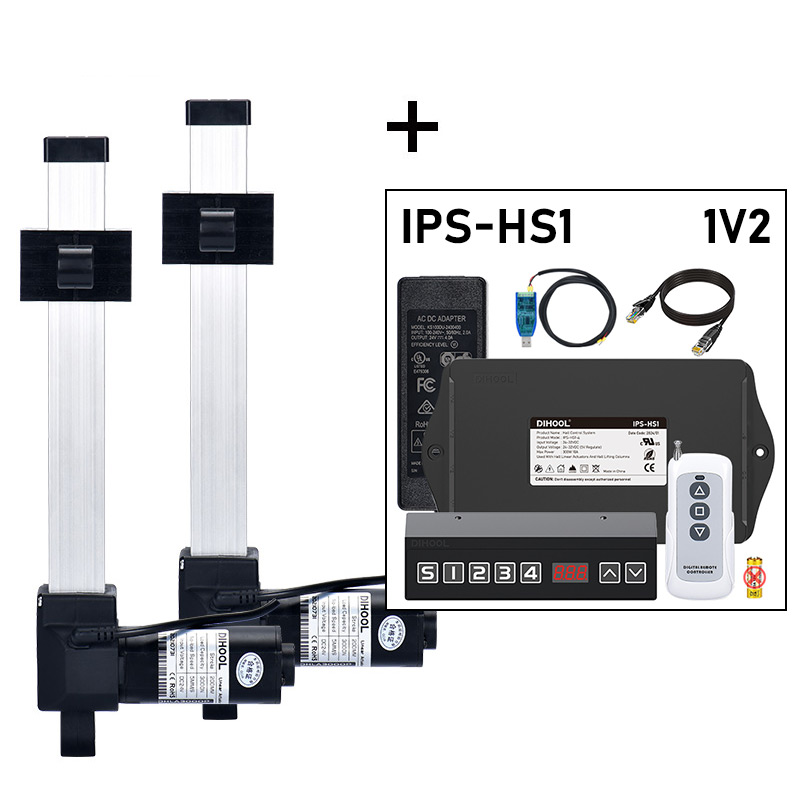

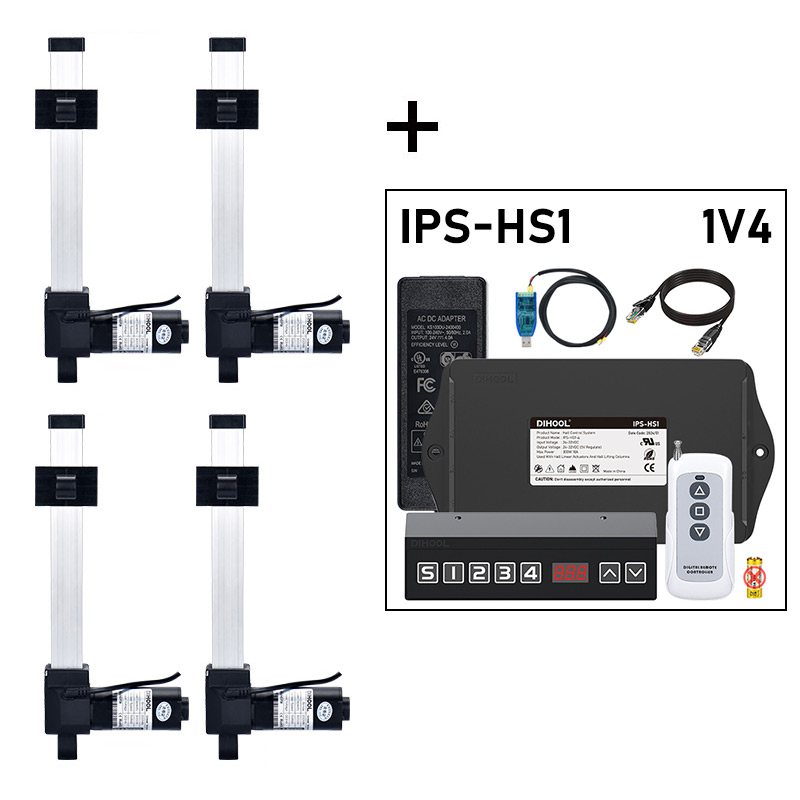

DHLA3000P Track Sliding Linear Actuator 24V A1

Stroke:
  • 50MM
  • 100MM
  • 150MMM
  • 200MM
  • 250MM
  • 300MM
  • 350MM
  • 400MM
  • 450MM
  • 500MM
  • 600MM
  • 700MM
  • 800MM
  • 900MM
  • 1000MM
Speed:
  • 5MM/S
  • 10MM/S
  • 13MM/S
  • 15MM/S
  • 20MM/S
  • 30MM/S
  • 40MM/S
  • 52MM/S
  • 68MM/S
  • 88MM/S



Voltage:24V
Current:2.5Amp
Max Load:3000N
Max Speed:88MM/S
Stroke:30-1000MM



About this item


1.High Thrust Performance: The DHLA3000P features a 60W high-power motor capable of handling a maximum load of 300kg, providing robust thrust for various applications.

2.Compact Installation Size: This product boasts a compact design with a minimum installation distance of just 105mm, making it suitable for installations with limited space.

3.Customizable Stroke: The stroke can be customized to meet specific customer requirements, ensuring flexibility for different applications.

4.High-Horsepower Permanent Magnet DC Motor: Equipped with a high-horsepower permanent magnet DC motor, it delivers outstanding performance and reliability, suitable for applications in the medical, furniture, and industrial sectors, among others.

5.Ultra-Quiet Design: The DHLA3000P incorporates an ultra-quiet design, ensuring low noise during operation and making it suitable for environments where quiet operation is essential.


Product Description

PRODUCT DESCRIPTION

DHLA3000P is a self-developed high-thrust electric sliding table linear actuator. The product With 60W Power Motor, maximum load of 300kg, and minimum installation distance of 105mm. The stroke can be customized according to customer needs. This product has a compact installation size, a high-horsepower permanent magnet DC motor, and an ultra-quiet design. Suitable for medical, furniture, industrial and other industries.

TECHNICAL PARAMETERS

VoltageDC24~32V
No-load Speed (MM/S)5101315203040526688
Load Pull Capacity(N)3000150012001000800600400300250150
Load Push Capacity(N)3000150012001000800600400300250150
Self-locking Capacity(N)35001800150012001000800600400300200
Stroke Length30MM-1000MM
Operating Temperature-20°C~+65°C
Limit SwitchesBuilt-in
Operating Frequency10% max 2min continuous use
Inner TubeAluminum tube
Lead screw TypeType T

The gray bottom can be equipped with a Hall sensor switch, the sound is low, mainly because the Hall motor is stocked, and the other can also be equipped with a Hall controller, the minimum order is 100 pieces.

Optional Configuration

Hall Sensor, Upper And Lower Limit Feedback

OUTLINE DIMENSION DRAWING
